M2B15AA5G03-FA

NKK Switches

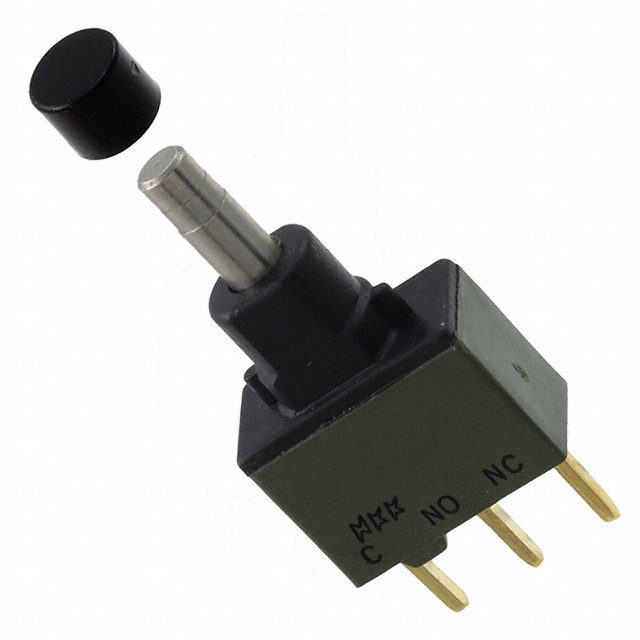

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M2B15AA5G03-FA
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSH SPDT 0.4VA 28V
Datasheets:	M2B15AA5G03-FA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14900 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14900 pcs

Reference Price (In US Dollars)

1 pcs: $2.048

10 pcs: $1.951

25 pcs: $1.853

50 pcs: $1.804

100 pcs: $1.756

300 pcs: $1.658

500 pcs: $1.561

1000 pcs: $1.414

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.048

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M2B15AA5G03-FA

Part Number	M2B15AA5G03-FA	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14900 pcs	Data sheet	M2B15AA5G03-FA.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Type	Standard	Termination Style	PC Pin
Switch Function	On-Mom	Series	M2
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-3449 M2B15AA5G03-FA-ND M2B15AA5G03FA	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Process Sealed	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Round, Button
