M2024S3A2G45

NKK Switches

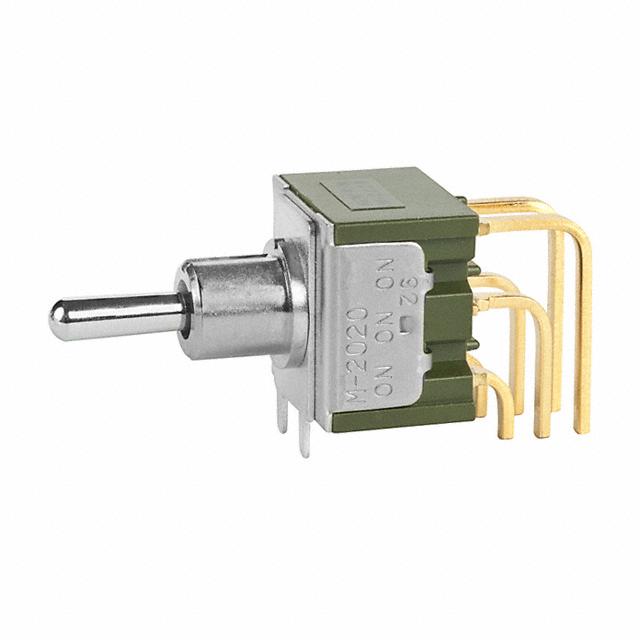

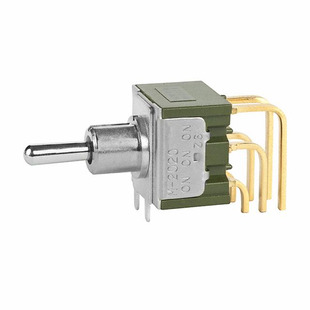

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M2024S3A2G45
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE SP3T 0.4VA 28V
Datasheets:	M2024S3A2G45.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12152 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12152 pcs

Reference Price (In US Dollars)

1 pcs: $3.06

10 pcs: $2.981

25 pcs: $2.90

50 pcs: $2.739

100 pcs: $2.658

250 pcs: $2.578

500 pcs: $2.175

1000 pcs: $2.094

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.06

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M2024S3A2G45

Part Number	M2024S3A2G45	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SP3T 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12152 pcs	Data sheet	M2024S3A2G45.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Function	On-On-On
Series	M	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	M2024S3A2G45-RO M2024S3A2G45-RO-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Jumper needed to achieve triple throw
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch SP3T Through Hole, Right Angle, Vertical
Current Rating	0.4VA (AC/DC)	Circuit	SP3T
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	8.28mm
