LW3123-F4GC-A

NKK Switches

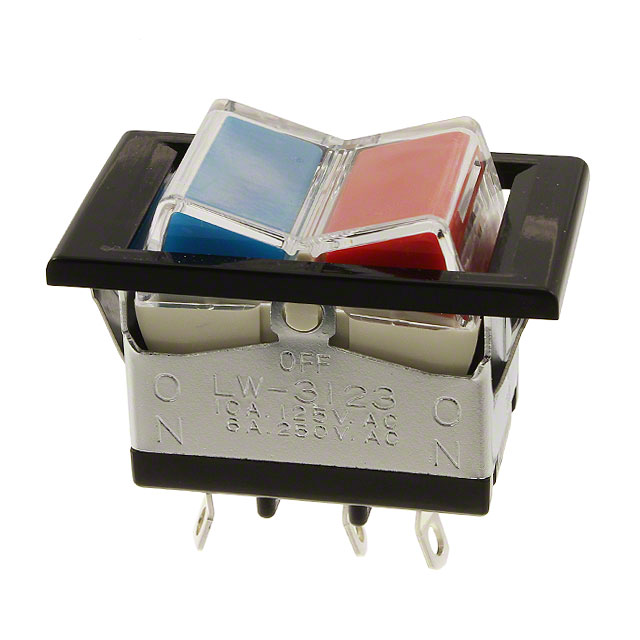

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LW3123-F4GC-A
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER DPDT 10A 125V
Datasheets:	LW3123-F4GC-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4278 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4278 pcs

Reference Price (In US Dollars)

1 pcs: $7.503

10 pcs: $6.91

25 pcs: $6.712

50 pcs: $6.515

100 pcs: $6.317

250 pcs: $5.725

500 pcs: $5.33

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.503

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LW3123-F4GC-A

Part Number	LW3123-F4GC-A	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4278 pcs	Data sheet	LW3123-F4GC-A.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Off-On
Series	LW	Panel Cutout Dimensions	Rectangular - 32.00mm x 19.80mm
Packaging	Bulk	Other Names	360-3069 LW3123-F4GC-A-ND
Operating Temperature	-20°C ~ 50°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	12 VAC
Illumination Type, Color	Incandescent, Blue/Red	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPDT 10A (AC), 6A (DC) 125V Panel Mount, Snap-In
Current Rating	10A (AC), 6A (DC)	Color - Actuator/Cap	Clear (Blue, White Filter/Diffuser)
Circuit	DPDT	Actuator Type	Concave (Standard V) - Illuminated
Actuator Marking	No Marking
