LB25RKW01-5D-JD

NKK Switches

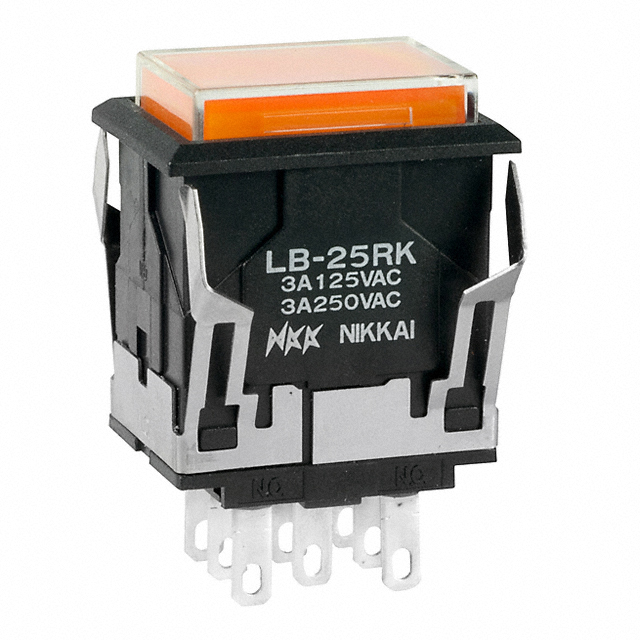

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LB25RKW01-5D-JD
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSHBUTTON DPDT 3A 125V
Datasheets:	LB25RKW01-5D-JD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7715 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 7715 pcs

Reference Price (In US Dollars)

1 pcs: $4.859

10 pcs: $4.604

25 pcs: $4.54

50 pcs: $4.22

100 pcs: $4.156

250 pcs: $3.708

500 pcs: $3.581

1000 pcs: $3.453

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.859

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LB25RKW01-5D-JD

Part Number	LB25RKW01-5D-JD	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7715 pcs	Data sheet	LB25RKW01-5D-JD.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Type	Standard, Illuminated	Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	LB
Panel Cutout Dimensions	Rectangular - 22.40mm x 16.20mm	Packaging	Bulk
Other Names	360-1674 360-1674-ND 360-2042 LB25RKW01-5D-JD-RO LB25RKW015DJD	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2 VDC	Illumination Type, Color	LED, Amber
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In	Current Rating	3A (AC/DC)
Color - Actuator/Cap	Clear (Amber Filter/Diffuser)	Circuit	DPDT
Actuator Type	Rectangular, Button
