LB25CGW01/UC-H

NKK Switches

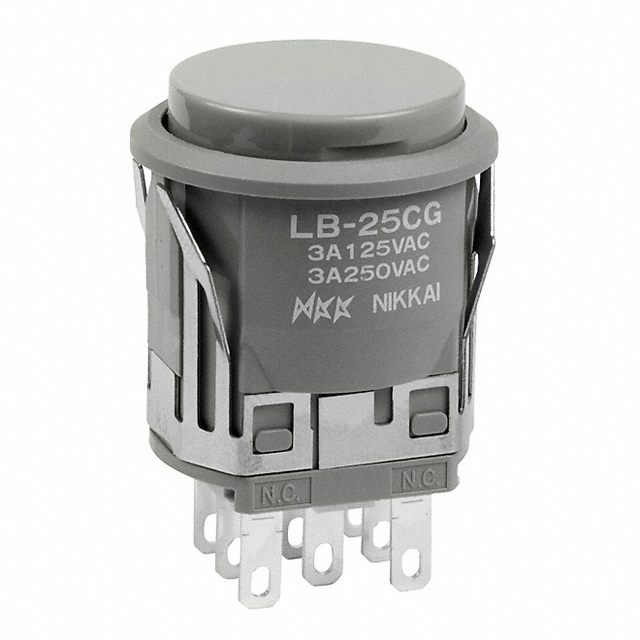

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LB25CGW01/UC-H
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSHBUTTON DPDT 3A 125V
Datasheets:	LB25CGW01/UC-H.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8184 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8184 pcs

Reference Price (In US Dollars)

1 pcs: $4.432

10 pcs: $4.101

25 pcs: $3.99

50 pcs: $3.768

100 pcs: $3.657

250 pcs: $3.436

500 pcs: $3.214

1000 pcs: $3.048

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.432

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LB25CGW01/UC-H

Part Number	LB25CGW01/UC-H	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8184 pcs	Data sheet	LB25CGW01/UC-H.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Type	Standard	Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	LB
Panel Cutout Dimensions	Circular - 22.00mm Dia	Packaging	Bulk
Other Names	360-2992 LB25CGW01/UC-00-H LB25CGW01/UC-00-H-ND	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Snap-In	Current Rating	3A (AC/DC)
Color - Actuator/Cap	Gray	Circuit	DPDT
Actuator Type	Round, Button
