LB15CKW01

NKK Switches

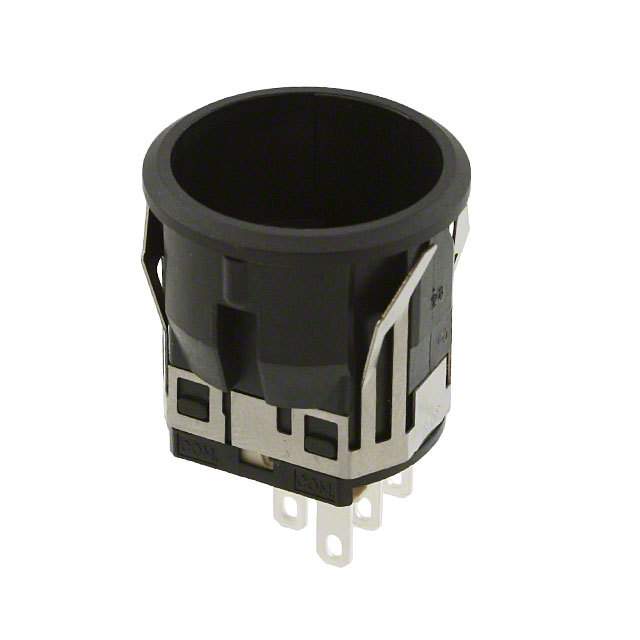

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LB15CKW01
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSHBUTTON SPDT 3A 125V
Datasheets:	LB15CKW01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12422 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12422 pcs

Reference Price (In US Dollars)

1 pcs: $3.168

10 pcs: $2.938

25 pcs: $2.86

50 pcs: $2.783

100 pcs: $2.628

250 pcs: $2.551

500 pcs: $2.396

1000 pcs: $2.165

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.168

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LB15CKW01

Part Number	LB15CKW01	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12422 pcs	Data sheet	LB15CKW01.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Type	Standard	Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	LB
Panel Cutout Dimensions	Circular - 22.00mm Dia	Packaging	Bulk
Other Names	360-2672 LB15CKW01-ND LB15CKW01-RO LB15CKW01-RO-ND	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Snap-In	Current Rating	3A (AC/DC)
Color - Actuator/Cap	-	Circuit	SPDT
Actuator Type	Plunger for Cap
