KB16CKG01-5F-JB

NKK Switches

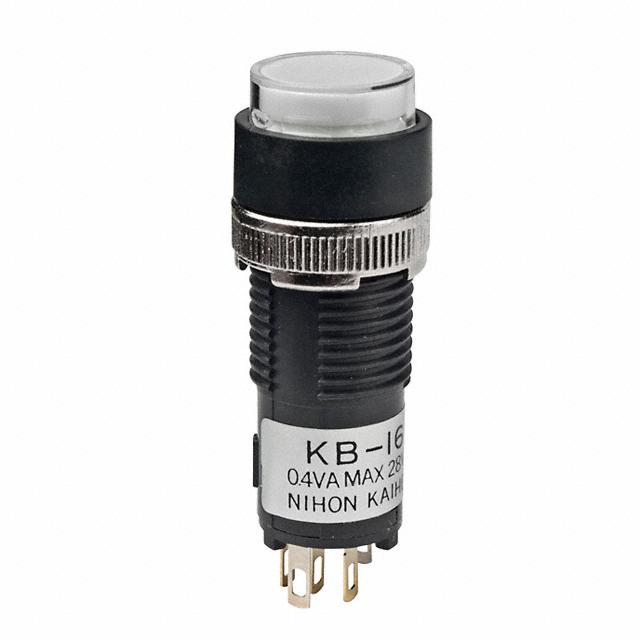

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KB16CKG01-5F-JB
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSH SPDT 0.4VA 28V
Datasheets:	KB16CKG01-5F-JB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9591 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9591 pcs

Reference Price (In US Dollars)

1 pcs: $3.649

10 pcs: $3.375

30 pcs: $3.284

50 pcs: $3.101

100 pcs: $3.01

250 pcs: $2.828

500 pcs: $2.645

1000 pcs: $2.508

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.649

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KB16CKG01-5F-JB

Part Number	KB16CKG01-5F-JB	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9591 pcs	Data sheet	KB16CKG01-5F-JB.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Type	Standard, Illuminated	Termination Style	Solder Lug
Switch Function	On-On	Series	KB
Panel Cutout Dimensions	Circular - 12.30mm Dia	Packaging	Bulk
Other Names	KB16CKG01-5F-JB-RO KB16CKG01-5F-JB-RO-ND KB16CKG015FJB	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.1 VDC	Illumination Type, Color	LED, Green
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Clear (White Filter/Diffuser)	Circuit	SPDT
Actuator Type	Round, Button
