JWS21BAA-A

NKK Switches

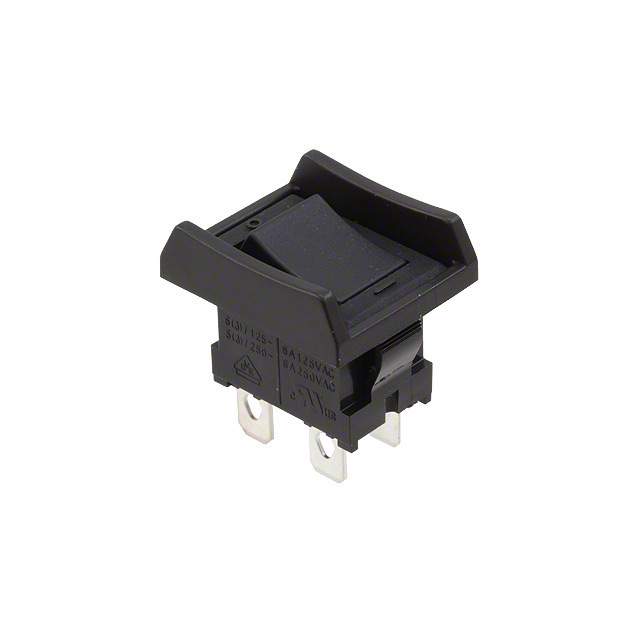

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JWS21BAA-A
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER DPST 6A 125V
Datasheets:	JWS21BAA-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14996 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14996 pcs

Reference Price (In US Dollars)

1 pcs: $2.554

10 pcs: $2.368

25 pcs: $2.243

50 pcs: $2.212

100 pcs: $2.181

250 pcs: $2.119

500 pcs: $1.932

1000 pcs: $1.745

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.554

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JWS21BAA-A

Part Number	JWS21BAA-A	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPST 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14996 pcs	Data sheet	JWS21BAA-A.pdf
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-Off	Series	JWS
Panel Cutout Dimensions	Rectangular - 19.20mm x 12.90mm	Packaging	Bulk
Other Names	360-3047 JWS21BAA-A-ND	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	Dust Proof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	With Barrier	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch DPST 6A (AC) 125V Panel Mount, Snap-In	Current Rating	6A (AC)
Color - Actuator/Cap	Black	Circuit	DPST
Actuator Type	Concave (Curved)	Actuator Marking	No Marking
