JWL12RAA

NKK Switches

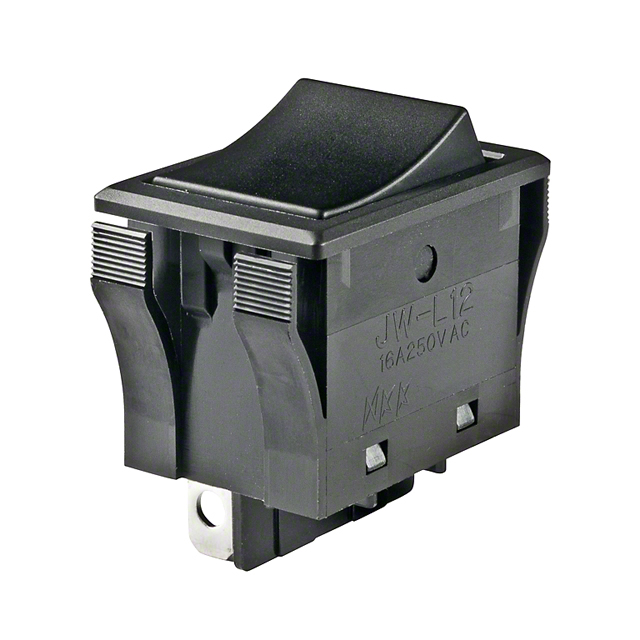

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JWL12RAA
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER SPDT 16A 125V
Datasheets:	JWL12RAA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10197 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10197 pcs

Reference Price (In US Dollars)

1 pcs: $3.157

10 pcs: $2.927

25 pcs: $2.773

50 pcs: $2.734

100 pcs: $2.696

250 pcs: $2.619

500 pcs: $2.388

1000 pcs: $2.156

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.157

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JWL12RAA

Part Number	JWL12RAA	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10197 pcs	Data sheet	JWL12RAA.pdf
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-On	Series	JW
Panel Cutout Dimensions	Rectangular - 29.50mm x 20.50mm	Packaging	Bulk
Other Names	360-1493	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	25,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	Dust Proof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch SPDT 16A (AC) 125V Panel Mount, Snap-In	Current Rating	16A (AC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Concave (Curved)	Actuator Marking	No Marking
