JS0104AP4-S

NKK Switches

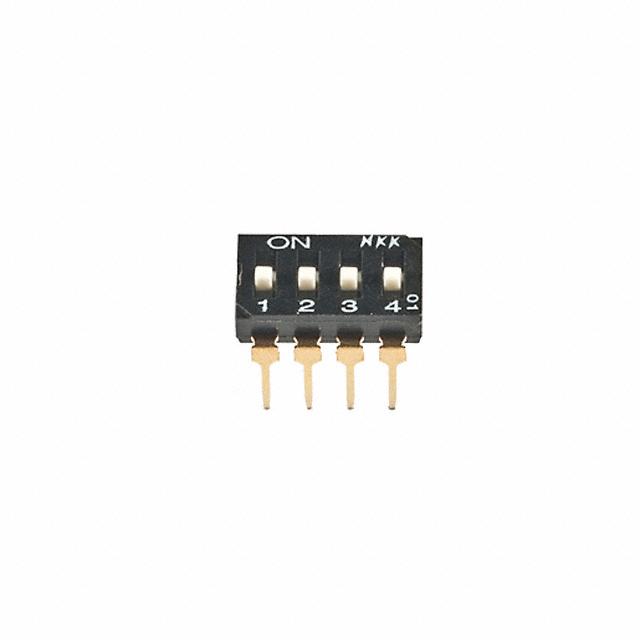

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JS0104AP4-S
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE DIP SPST 25MA 24V
Datasheets:	JS0104AP4-S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	56071 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 56071 pcs

Reference Price (In US Dollars)

1 pcs: $0.704

10 pcs: $0.683

46 pcs: $0.648

92 pcs: $0.606

138 pcs: $0.592

276 pcs: $0.507

506 pcs: $0.493

1012 pcs: $0.423

5014 pcs: $0.387

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.704

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JS0104AP4-S

Part Number	JS0104AP4-S	Manufacturer	NKK Switches
Description	SWITCH SLIDE DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56071 pcs	Data sheet	JS0104AP4-S.pdf
Washable	No	Voltage Rating	24VDC
Termination Style	PC Pin	Series	JS
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	JS0104AP4S	Operating Temperature	-25°C ~ 70°C
Number of Positions	4	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	2,000 Cycles
Manufacturer Standard Lead Time	5 Weeks	Length	0.437" (11.10mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.162" (4.11mm)
Features	-	Electrical Life	2,000 Cycles
Detailed Description	Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Beryllium Copper	Contact Finish	Gold
Circuit	SPST	Body Material	Polyamide (PA), Nylon, Glass Filled
Actuator Type	Slide (Standard)	Actuator Level	Raised
