JF15SP1D

NKK Switches

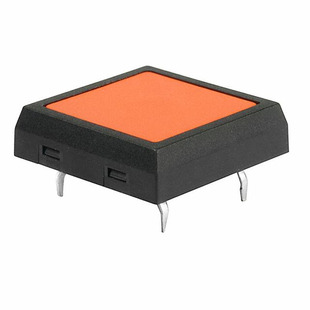

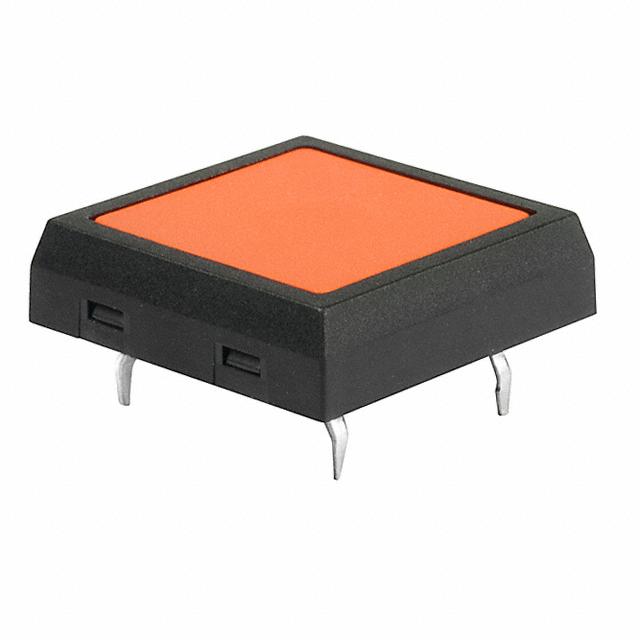

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JF15SP1D
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	JF15SP1D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29533 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 29533 pcs

Reference Price (In US Dollars)

1 pcs: $1.127

10 pcs: $1.084

25 pcs: $0.997

50 pcs: $0.867

100 pcs: $0.824

250 pcs: $0.802

500 pcs: $0.78

1000 pcs: $0.607

5000 pcs: $0.564

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.127

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JF15SP1D

Part Number	JF15SP1D	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29533 pcs	Data sheet	JF15SP1D.pdf
Termination Style	PC Pin	Switch Travel	0.40mm
Switch Function	Off-Mom	Series	JF
Packaging	Tray	Outline	17.70mm x 17.70mm
Operating Temperature	-25°C ~ 85°C	Operating Force	300gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	Polyamide (PA), Nylon
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	5.08mm
