NKK Switches

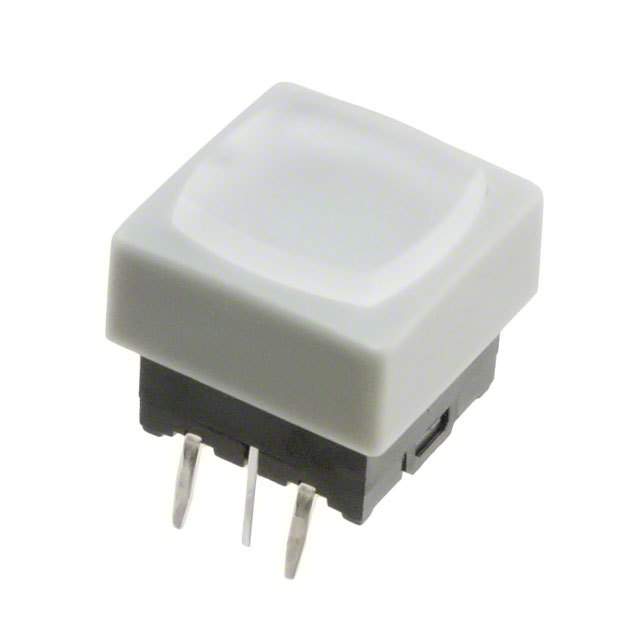

| Part Number | JB15LPF-BH | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22742 pcs | Data sheet | JB15LPF-BH.pdf |
| Termination Style | PC Pin | Switch Travel | 0.25mm |
| Switch Function | Off-Mom | Series | JB |
| Packaging | Bulk | Outline | 10.00mm x 10.00mm |
| Other Names | 360-2642 JB15LPF-BH-ND JB15LPFBH Q2074721 |
Operating Temperature | -25°C ~ 70°C |
| Operating Force | 176gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 5,000,000 Cycles |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 2.1 VDC |
| Illumination Type, Color | LED, Green | Illumination | Illuminated |
| Features | Process Sealed | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.05A @ 24VDC | Circuit | SPST-NO |
| Actuator Type | Square Button | Actuator Orientation | Top Actuated |
| Actuator Material | Polyacetal | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 11.20mm |
