NKK Switches

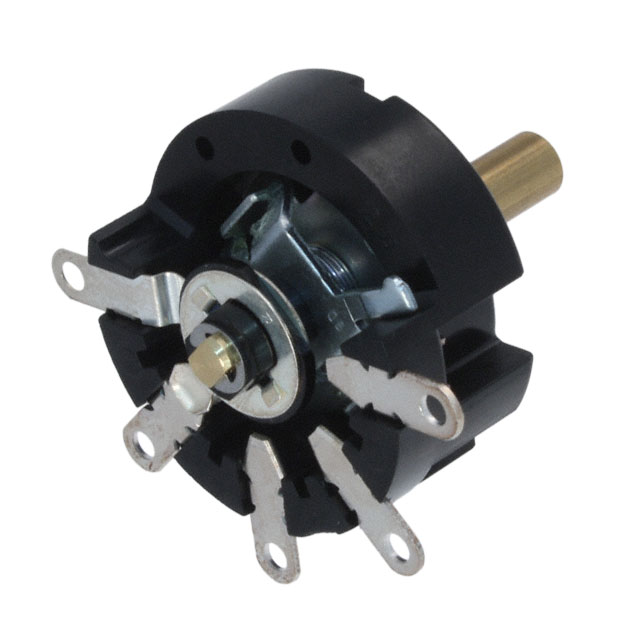

| Part Number | HS13Z | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH ROTARY 4POS 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12015 pcs | Data sheet | HS13Z.pdf |
| Voltage Rating - DC | 30V | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Series | HS |
| Panel Cutout Dimensions | Circular - 10.30mm Dia | Other Names | 360-2809 HS13-Z HS13-Z-ND HS13Z-ND HS13Z-RO HS13Z-RO-ND |
| Operating Force | 15 ~ 24gfm | Number of Positions | 4 |
| Number of Poles per Deck | 1 | Number of Decks | 1 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Fixed | Features | - |
| Detailed Description | Rotary Switch 4 Position SP4T 6A (AC), 5A (DC) 125VAC Panel Mount | Depth Behind Panel | 20.00mm |
| Current Rating | 6A (AC), 5A (DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Phosphor Bronze | Contact Finish | - |
| Circuit per Deck | SP4T | Angle of Throw | 45° |
| Actuator Type | Round (6mm Dia) | Actuator Length | 10.00mm |
