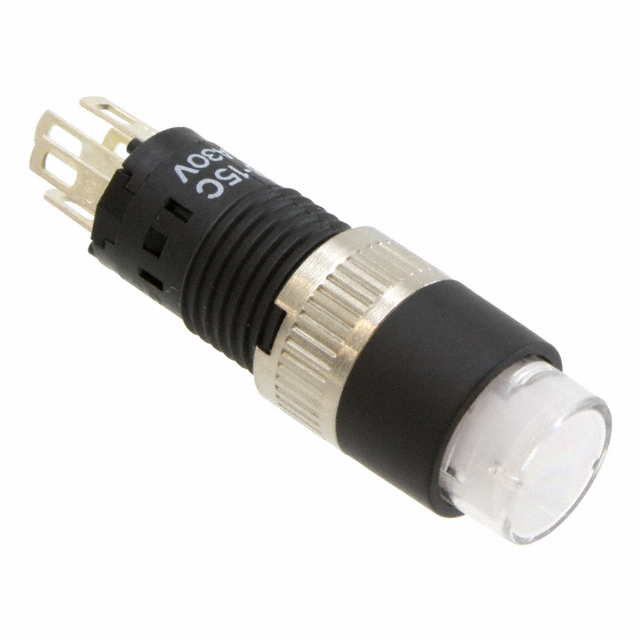

HB15CKW01-5C-JB

NKK Switches

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HB15CKW01-5C-JB
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSH SPDT 0.1A 30V
Datasheets:	HB15CKW01-5C-JB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12382 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12382 pcs

Reference Price (In US Dollars)

1 pcs: $2.912

10 pcs: $2.697

25 pcs: $2.626

50 pcs: $2.555

100 pcs: $2.413

250 pcs: $2.342

500 pcs: $2.20

1000 pcs: $1.988

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.912

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HB15CKW01-5C-JB

Part Number	HB15CKW01-5C-JB	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.1A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12382 pcs	Data sheet	HB15CKW01-5C-JB.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	30V
Type	Standard, Illuminated	Termination Style	Solder Lug
Switch Function	On-Mom	Series	HB
Panel Cutout Dimensions	Circular - 8.00mm Dia	Packaging	Tray
Other Names	360-2686 HB15CKW01-5C-JB-ND HB15CKW015CJB	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	1.95 VDC	Illumination Type, Color	LED, Red
Features	-	Electrical Life	50,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front	Current Rating	100mA (DC)
Color - Actuator/Cap	Clear (White Filter/Diffuser)	Circuit	SPDT
Actuator Type	Round, Button
