GB15AH-XB

NKK Switches

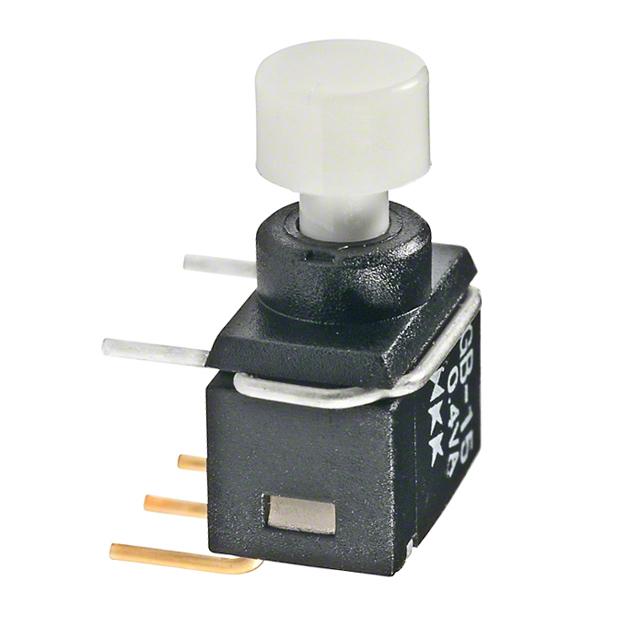

Image may be representation. See specifications for product details.

Product Overview

Part Number:	GB15AH-XB
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSH SPDT 0.4VA 28V
Datasheets:	GB15AH-XB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15828 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15828 pcs

Reference Price (In US Dollars)

1 pcs: $1.882

10 pcs: $1.792

25 pcs: $1.702

50 pcs: $1.657

100 pcs: $1.613

300 pcs: $1.523

500 pcs: $1.433

1000 pcs: $1.299

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.882

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of GB15AH-XB

Part Number	GB15AH-XB	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15828 pcs	Data sheet	GB15AH-XB.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Type	Standard	Termination Style	PC Pin
Switch Function	On-Mom	Series	GB
Panel Cutout Dimensions	-	Packaging	Tray
Other Names	GB15AH-XB-RO GB15AH-XB-RO-ND GB15AHXB	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	50,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	White	Circuit	SPDT
Actuator Type	Round, Button
