G29AH

NKK Switches

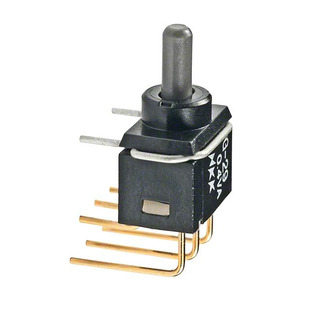

Image may be representation. See specifications for product details.

Product Overview

Part Number:	G29AH
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 0.4VA 28V
Datasheets:	G29AH.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12810 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12810 pcs

Reference Price (In US Dollars)

1 pcs: $2.572

10 pcs: $2.443

25 pcs: $2.379

50 pcs: $2.315

100 pcs: $2.251

300 pcs: $2.122

500 pcs: $1.80

1000 pcs: $1.704

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.572

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of G29AH

Part Number	G29AH	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12810 pcs	Data sheet	G29AH.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Function	On-Off-Mom
Series	G	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	G29AH-RO G29AH-RO-ND
Operating Temperature	-25°C ~ 85°C	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch DPDT Through Hole, Right Angle
Current Rating	0.4VA (AC/DC)	Circuit	DPDT
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Length	3.80mm
