CWSB21DADF

NKK Switches

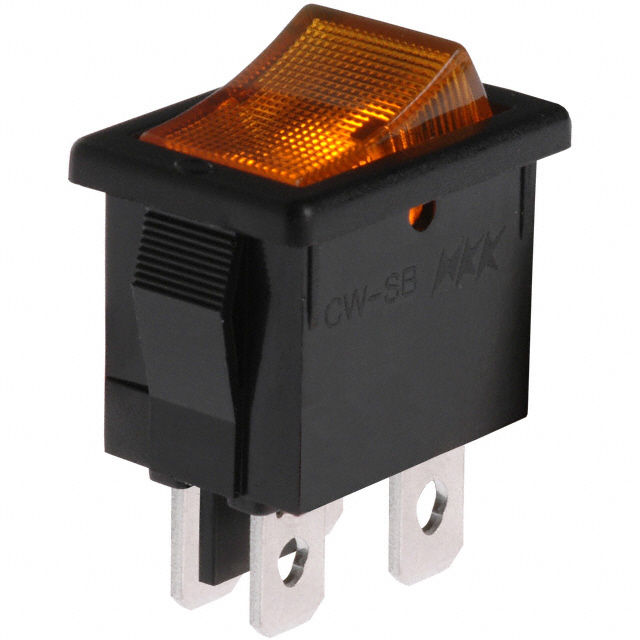

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CWSB21DADF
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER DPST 9A 125V
Datasheets:	CWSB21DADF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22361 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22361 pcs

Reference Price (In US Dollars)

1 pcs: $1.322

10 pcs: $1.29

25 pcs: $1.228

50 pcs: $1.167

100 pcs: $1.105

250 pcs: $1.075

500 pcs: $1.044

1000 pcs: $0.921

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.322

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CWSB21DADF

Part Number	CWSB21DADF	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPST 9A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22361 pcs	Data sheet	CWSB21DADF.pdf
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.187" (4.7mm)
Switch Function	On-Off	Series	CWSB
Panel Cutout Dimensions	Rectangular - 19.20mm x 12.90mm	Packaging	Bulk
Other Names	360-1729	Operating Temperature	-20°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	125 VAC	Illumination Type, Color	Neon, Amber
Features	Audible Click	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch DPST 9A (AC) 125V Panel Mount, Snap-In	Current Rating	9A (AC)
Color - Actuator/Cap	Amber	Circuit	DPST
Actuator Type	Concave (Curved) - Illuminated	Actuator Marking	No Marking
