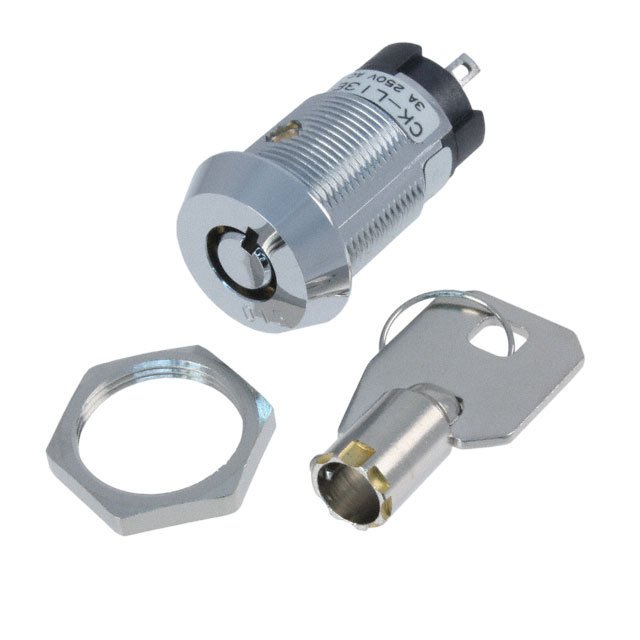

NKK Switches
| Part Number | CKL13ETW01-015 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH KEYLOCK 3POS SPDT 3A 250V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6193 pcs | Data sheet | CKL13ETW01-015.pdf |
| Voltage Rating - AC | 250V | Termination Style | Solder Lug |
| Switch Function | On-Off-On | Series | CK |
| Panel Cutout Dimensions | Circular - 19.00mm Dia | Other Names | CKL13ETW01015 CKL13ETWO1-015 CKL13ETWO1-015-ND |
| Operating Temperature | -25°C ~ 70°C | Number of Positions | 3 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 30,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Key Removable Positions | 2 only | Features | Epoxy Sealed Terminals |
| Electrical Life | 10,000 Cycles | Detailed Description | Keylock Switch 3 Position SPDT 3A (AC) 250VAC Panel Mount |
| Depth Behind Flange | 34.60mm | Current Rating | 3A (AC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Silver (Ag) |
| Contact Finish | Silver | Circuit | SPDT |
| Angle of Throw | 45° | Actuator Type | Tubular Key |
