CB15FP

NKK Switches

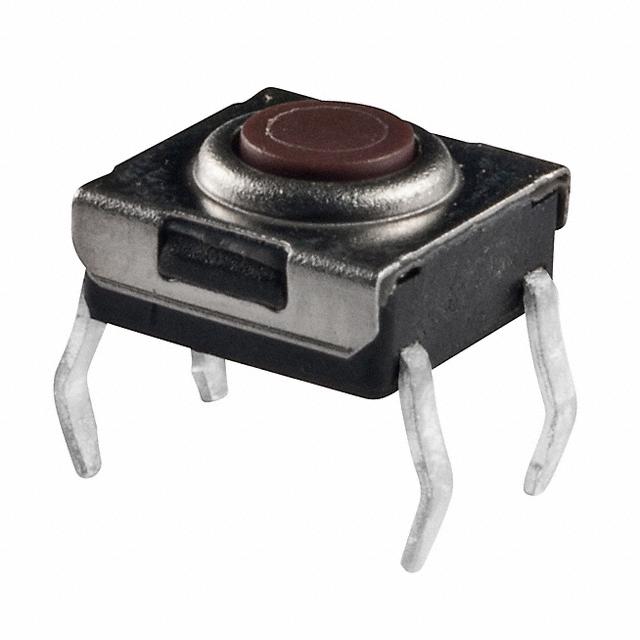

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CB15FP
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	CB15FP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	66962 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 66962 pcs

Reference Price (In US Dollars)

1 pcs: $0.452

10 pcs: $0.433

25 pcs: $0.399

50 pcs: $0.347

100 pcs: $0.329

250 pcs: $0.321

500 pcs: $0.312

1000 pcs: $0.243

5000 pcs: $0.225

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.452

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CB15FP

Part Number	CB15FP	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66962 pcs	Data sheet	CB15FP.pdf
Termination Style	PC Pin	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	CB
Packaging	Tray	Outline	6.20mm x 6.20mm
Operating Temperature	-25°C ~ 70°C	Operating Force	157gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Sealed - Fully
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Standard
Actuator Orientation	Top Actuated	Actuator Material	Polyamide (PA), Nylon, Glass Filled
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	3.10mm
