B23JP

NKK Switches

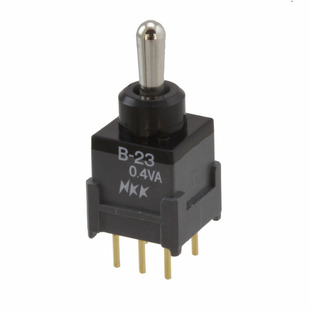

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B23JP
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 0.4VA 28V
Datasheets:	B23JP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19081 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 19081 pcs

Reference Price (In US Dollars)

1 pcs: $1.564

10 pcs: $1.488

25 pcs: $1.451

50 pcs: $1.414

100 pcs: $1.377

250 pcs: $1.265

500 pcs: $1.116

1000 pcs: $1.005

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.564

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B23JP

Part Number	B23JP	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19081 pcs	Data sheet	B23JP.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Function	On-Off-On
Series	B	Panel Cutout Dimensions	-
Packaging	Bulk	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch DPDT Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	DPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	6.30mm
