NZ2520SB-40.000000MHZ

NDK

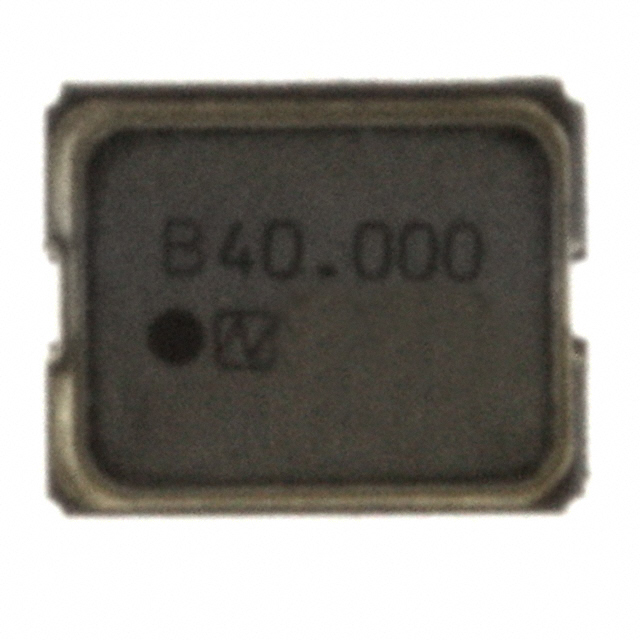

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NZ2520SB-40.000000MHZ
Manufacturer/Brand:	NDK
Product description	OSC XO 40.000MHZ CMOS SMD
Datasheets:	NZ2520SB-40.000000MHZ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	88842 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 88842 pcs

Reference Price (In US Dollars)

3000 pcs: $0.388

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.388

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NZ2520SB-40.000000MHZ

Part Number	NZ2520SB-40.000000MHZ	Manufacturer	NDK
Description	OSC XO 40.000MHZ CMOS SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	88842 pcs	Data sheet	NZ2520SB-40.000000MHZ.pdf
Voltage - Supply	3V	Type	XO (Standard)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)	Series	NZ2520SB
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, No Lead	Output	CMOS
Other Names	644-1152-2 NZ2520SB-40.000000MHZ-NSA3414C	Operating Temperature	-10°C ~ 60°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.035" (0.90mm)	Function	Standby (Power Down)
Frequency Stability	±30ppm	Frequency	40MHz
Detailed Description	40MHz XO (Standard) CMOS Oscillator 3V Standby (Power Down) 4-SMD, No Lead	Current - Supply (Max)	6mA
Current - Supply (Disable) (Max)	-	Base Resonator	Crystal
