NX1255GB-20.000000MHZ

NDK

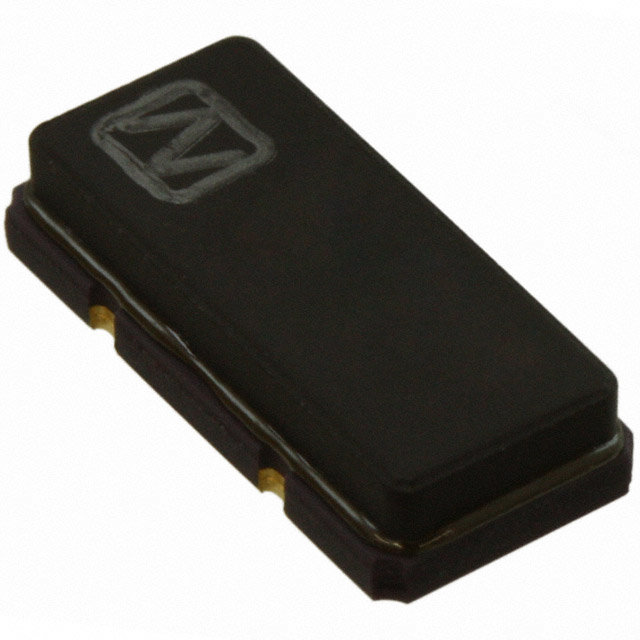

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NX1255GB-20.000000MHZ
Manufacturer/Brand:	NDK
Product description	CRYSTAL 20.0000MHZ 12PF SMD
Datasheets:	NX1255GB-20.000000MHZ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	181586 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 181586 pcs

Reference Price (In US Dollars)

1000 pcs: $0.211

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.211

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NX1255GB-20.000000MHZ

Part Number	NX1255GB-20.000000MHZ	Manufacturer	NDK
Description	CRYSTAL 20.0000MHZ 12PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	181586 pcs	Data sheet	NX1255GB-20.000000MHZ.pdf
Type	MHz Crystal	Size / Dimension	0.465" L x 0.217" W (11.80mm x 5.50mm)
Series	NX1255GB	Ratings	-
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, No Lead
Other Names	50157465 644-1015-2 NX1255GB-20.000000MHZ-STD-CSA-1 NX1255GB20000000MHZ	Operating Temperature	-10°C ~ 70°C
Operating Mode	Fundamental	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Load Capacitance	12pF	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.104" (2.65mm)	Frequency Tolerance	±50ppm
Frequency Stability	±50ppm	Frequency	20MHz
ESR (Equivalent Series Resistance)	50 Ohms	Detailed Description	20MHz ±50ppm Crystal 12pF 50 Ohms 4-SMD, No Lead
