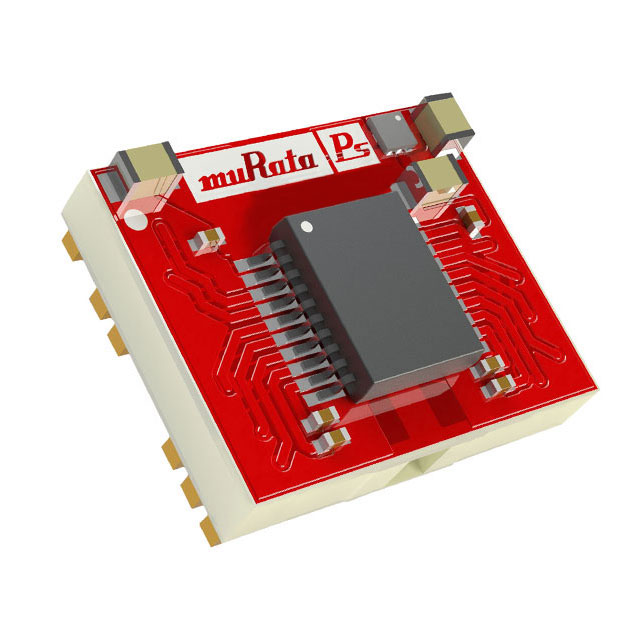

NMTTLD6S5MC-R7

Murata Power Solutions

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NMTTLD6S5MC-R7
Manufacturer/Brand:	Murata Power Solutions
Product description	DGTL ISO 1.5KV GEN PURP
Datasheets:	NMTTLD6S5MC-R7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6891 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6891 pcs

Reference Price (In US Dollars)

80 pcs: $4.255

160 pcs: $3.844

400 pcs: $3.775

560 pcs: $3.706

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.255

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NMTTLD6S5MC-R7

Part Number	NMTTLD6S5MC-R7	Manufacturer	Murata Power Solutions
Description	DGTL ISO 1.5KV GEN PURP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6891 pcs	Data sheet	NMTTLD6S5MC-R7.pdf
Voltage - Supply	4.5 V ~ 5.5 V	Voltage - Isolation	1500VAC
Type	General Purpose	Technology	Magnetic Coupling
Supplier Device Package	-	Series	-
Rise / Fall Time (Typ)	-	Pulse Width Distortion (Max)	3ns
Propagation Delay tpLH / tpHL (Max)	33ns, 33ns	Packaging	Tape & Reel (TR)
Package / Case	Module	Other Names	811-3270-2
Operating Temperature	-40°C ~ 95°C	Number of Channels	2
Moisture Sensitivity Level (MSL)	2 (1 Year)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Isolated Power	Yes
Inputs - Side 1/Side 2	1/1	Detailed Description	General Purpose Digital Isolator 1500VAC 2 Channel 25Mbps 25kV/µs CMTI Module
Data Rate	25Mbps	Common Mode Transient Immunity (Min)	25kV/µs
Channel Type	Unidirectional
