NMK1509SC

Murata Power Solutions

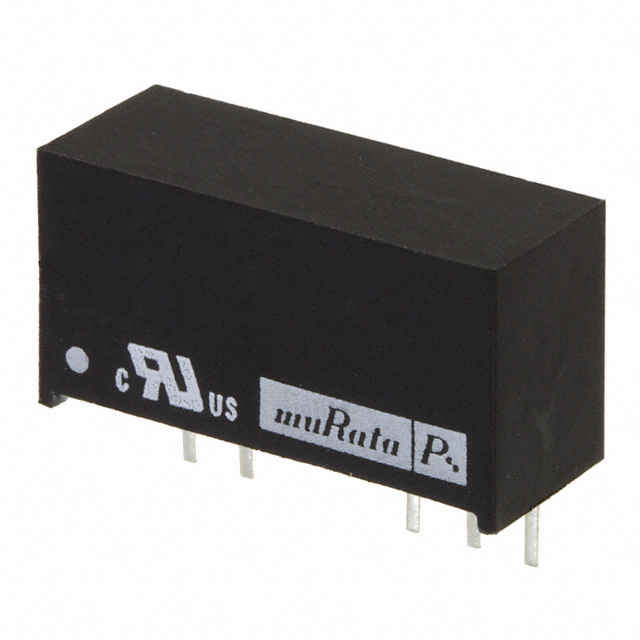

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NMK1509SC
Manufacturer/Brand:	Murata Power Solutions
Product description	DC DC CONVERTER +/-9V 2W
Datasheets:	NMK1509SC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12506 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12506 pcs

Reference Price (In US Dollars)

1 pcs: $2.926

5 pcs: $2.912

10 pcs: $2.89

25 pcs: $2.857

50 pcs: $2.789

100 pcs: $2.648

250 pcs: $2.478

500 pcs: $2.312

1000 pcs: $2.301

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.926

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NMK1509SC

Part Number	NMK1509SC	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER +/-9V 2W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12506 pcs	Data sheet	NMK1509SC.pdf
Voltage - Output 3	-	Voltage - Output 2	-9V
Voltage - Output 1	9V	Voltage - Isolation	3kV
Voltage - Input (Min)	13.5V	Voltage - Input (Max)	16.5V
Type	Isolated Module	Size / Dimension	0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Series	NMK	Power (Watts)	2W
Packaging	Tube	Package / Case	7-SIP Module, 5 Leads
Other Names	811-2347-5	Operating Temperature	-40°C ~ 85°C
Number of Outputs	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Efficiency	86%	Detailed Description	Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 13.5V - 16.5V Input
Current - Output (Max)	111mA, 111mA	Control Features	-
Applications	ITE (Commercial)
