55050C-R

Murata Power Solutions

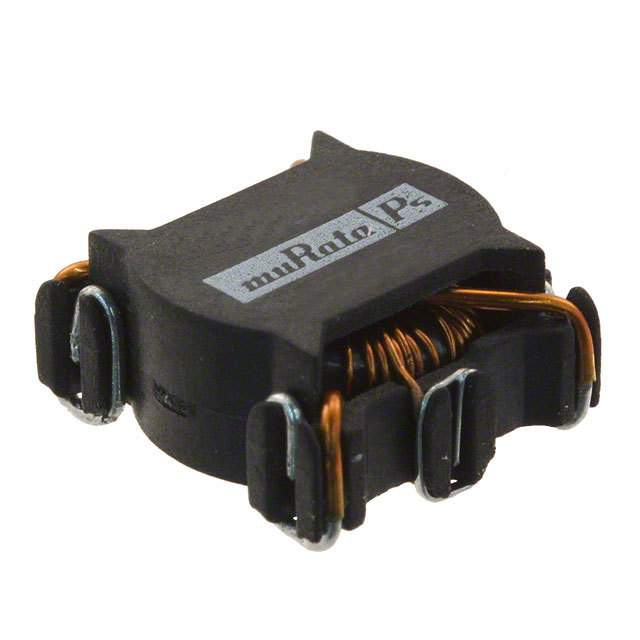

Image may be representation. See specifications for product details.

Product Overview

Part Number:	55050C-R
Manufacturer/Brand:	Murata Power Solutions
Product description	CURR SENSE XFMR 1:1:50 15A SMD
Datasheets:	55050C-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74038 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 74038 pcs

Reference Price (In US Dollars)

650 pcs: $0.441

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.441

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 55050C-R

Part Number	55050C-R	Manufacturer	Murata Power Solutions
Description	CURR SENSE XFMR 1:1:50 15A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74038 pcs	Data sheet	55050C-R.pdf
Weight	0.004 lb (1.70g)	Type	Invasive
Turns Ratio - Primary:Secondary	1:1:50	Termination Style	-
Size / Dimension	0.575" L x 0.496" W (14.60mm x 12.60mm)	Series	5500
Ratings	-	Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	3.8mH	Height - Seated (Max)	0.280" (7.10mm)
Frequency Range	50kHz ~ 500kHz	Energy Time (E.T.)	-
Detailed Description	15A 1:1:50 Current Sense Transformer 50kHz ~ 500kHz 2.3 mOhm Primary, 350 mOhm Secondary 3.8mH Surface Mount	DC Resistance (DCR)	2.3 mOhm Primary, 350 mOhm Secondary
Current Ratio	-	Current Rating	15A
