54100C

Murata Power Solutions

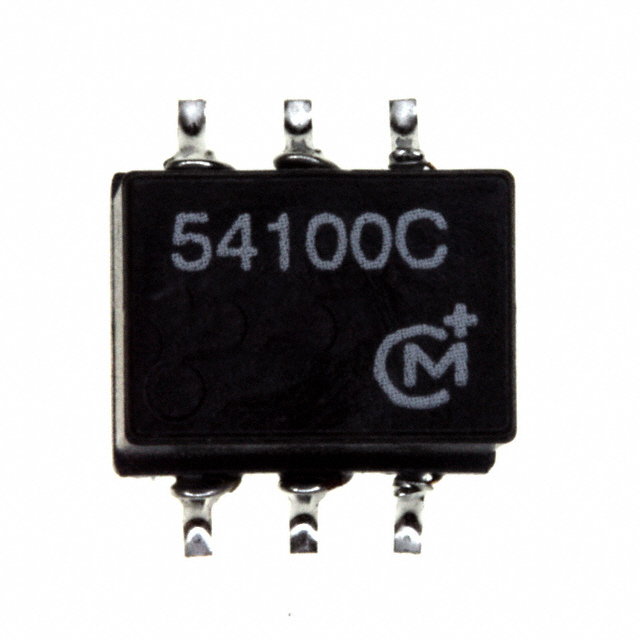

Image may be representation. See specifications for product details.

Product Overview

Part Number:	54100C
Manufacturer/Brand:	Murata Power Solutions
Product description	CURR SENSE XFMR 1:1:100 15A SMD
Datasheets:	54100C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	69385 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 69385 pcs

Reference Price (In US Dollars)

450 pcs: $0.52

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.52

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 54100C

Part Number	54100C	Manufacturer	Murata Power Solutions
Description	CURR SENSE XFMR 1:1:100 15A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69385 pcs	Data sheet	54100C.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	1:1:100	Termination Style	Gull Wing
Size / Dimension	0.354" L x 0.425" W (9.00mm x 10.80mm)	Series	5400
Ratings	-	Packaging	Tape & Reel (TR)
Other Names	811-1198-2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	14.8mH
Height - Seated (Max)	0.323" (8.20mm)	Frequency Range	50kHz ~ 500kHz
Energy Time (E.T.)	-	Detailed Description	1:1:100 Current Sense Transformer 50kHz ~ 500kHz 7 mOhm Primary, 3.2 Ohm Secondary 14.8mH Surface Mount
DC Resistance (DCR)	7 mOhm Primary, 3.2 Ohm Secondary	Current Ratio	-
