53100C

Murata Power Solutions

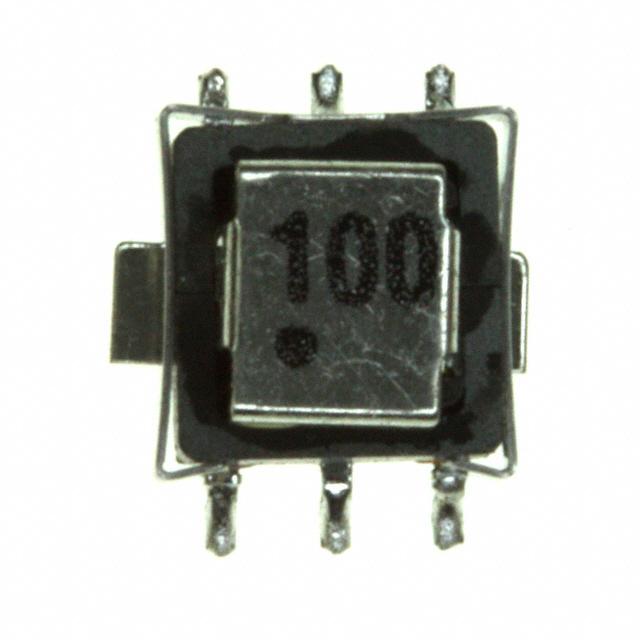

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53100C
Manufacturer/Brand:	Murata Power Solutions
Product description	CURR SENSE XFMR 1:100 10A SMD
Datasheets:	53100C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	59151 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 59151 pcs

Reference Price (In US Dollars)

1 pcs: $0.636

10 pcs: $0.585

25 pcs: $0.531

50 pcs: $0.455

100 pcs: $0.415

250 pcs: $0.365

500 pcs: $0.329

1000 pcs: $0.307

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.636

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53100C

Part Number	53100C	Manufacturer	Murata Power Solutions
Description	CURR SENSE XFMR 1:100 10A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59151 pcs	Data sheet	53100C.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	1:100	Termination Style	Gull Wing
Size / Dimension	0.283" L x 0.327" W (7.20mm x 8.30mm)	Series	5300
Ratings	-	Packaging	Cut Tape (CT)
Other Names	811-1193-1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	2mH
Height - Seated (Max)	0.213" (5.40mm)	Frequency Range	50kHz ~ 500kHz
Energy Time (E.T.)	-	Detailed Description	1:100 Current Sense Transformer 50kHz ~ 500kHz 7 mOhm Primary, 5.6 Ohm Secondary 2mH Surface Mount
DC Resistance (DCR)	7 mOhm Primary, 5.6 Ohm Secondary	Current Ratio	-
