22R683C

Murata Power Solutions

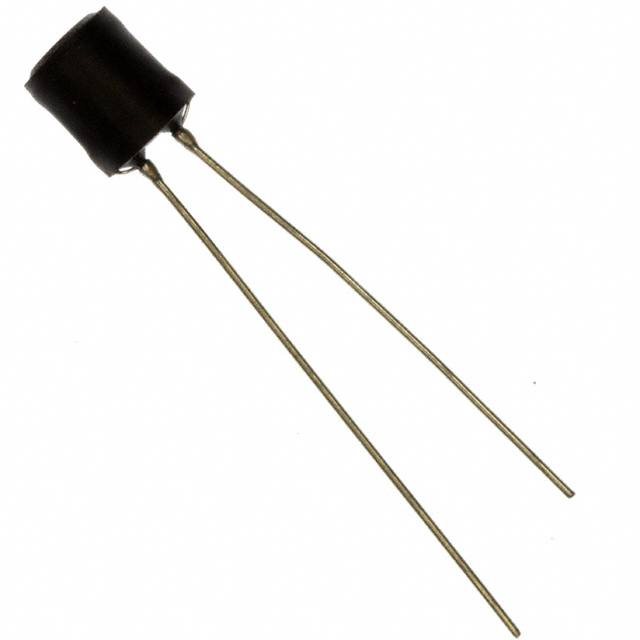

Image may be representation. See specifications for product details.

Product Overview

Part Number:	22R683C
Manufacturer/Brand:	Murata Power Solutions
Product description	FIXED IND 68UH 770MA 280 MOHM TH
Datasheets:	22R683C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	171171 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 171171 pcs

Reference Price (In US Dollars)

1 pcs: $0.213

25 pcs: $0.21

50 pcs: $0.202

100 pcs: $0.195

250 pcs: $0.181

500 pcs: $0.168

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.213

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 22R683C

Part Number	22R683C	Manufacturer	Murata Power Solutions
Description	FIXED IND 68UH 770MA 280 MOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	171171 pcs	Data sheet	22R683C.pdf
Type	Wirewound	Tolerance	±10%
Supplier Device Package	-	Size / Dimension	0.256" Dia (6.50mm)
Shielding	Unshielded	Series	2200R
Ratings	-	Q @ Freq	90 @ 100kHz
Packaging	Bulk	Package / Case	Radial
Other Names	811-1289	Operating Temperature	-25°C ~ 70°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	1kHz
Inductance	68µH	Height - Seated (Max)	0.413" (10.50mm)
Frequency - Self Resonant	8.7MHz	Detailed Description	68µH Unshielded Wirewound Inductor 770mA 280 mOhm Max Radial
DC Resistance (DCR)	280 mOhm Max	Current Rating	770mA
Current - Saturation	-
