NFL21SP706X1C3D

Murata Electronics

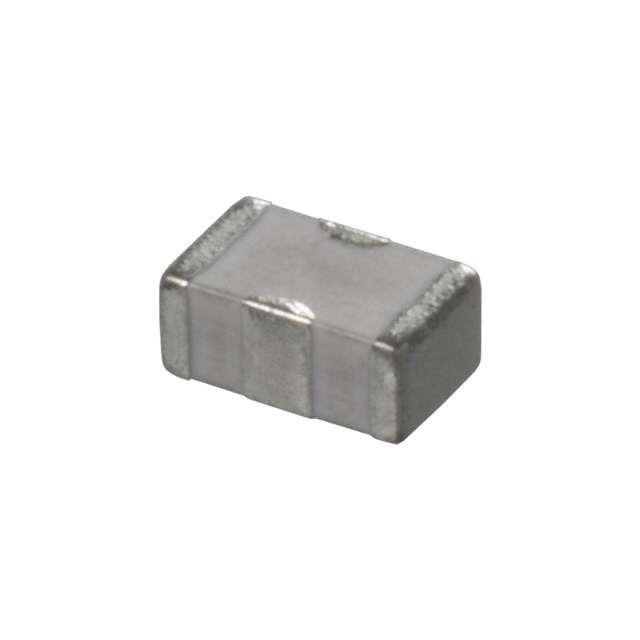

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NFL21SP706X1C3D
Manufacturer/Brand:	Murata Electronics
Product description	FILTER LC(PI) 185NH/76PF SMD
Datasheets:	1.NFL21SP706X1C3D.pdf 2.NFL21SP706X1C3D.pdf 3.NFL21SP706X1C3D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	214790 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 214790 pcs

Reference Price (In US Dollars)

1 pcs: $0.148

10 pcs: $0.137

25 pcs: $0.13

50 pcs: $0.126

100 pcs: $0.122

250 pcs: $0.116

500 pcs: $0.097

1000 pcs: $0.075

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.148

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NFL21SP706X1C3D

Part Number	NFL21SP706X1C3D	Manufacturer	Murata Electronics
Description	FILTER LC(PI) 185NH/76PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	214790 pcs	Data sheet	1.NFL21SP706X1C3D.pdf 2.NFL21SP706X1C3D.pdf 3.NFL21SP706X1C3D.pdf
Voltage - Rated	16V	Values	L = 185nH, C = 76pF
Type	Low Pass	Technology	LC (Pi)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)	Series	EMIFIL®, NFL21
Resistance - Channel (Ohms)	-	Packaging	Original-Reel®
Package / Case	0805 (2012 Metric), 3 PC Pad	Other Names	490-2541-6
Operating Temperature	-55°C ~ 125°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.037" (0.95mm)	Filter Order	3rd
ESD Protection	No	Detailed Description	LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 185nH, C = 76pF 150mA 0805 (2012 Metric), 3 PC Pad
Current	150mA	Center / Cutoff Frequency	70MHz (Cutoff)
Attenuation Value	-	Applications	General Purpose
