NFL18ST507X1C3D

Murata Electronics

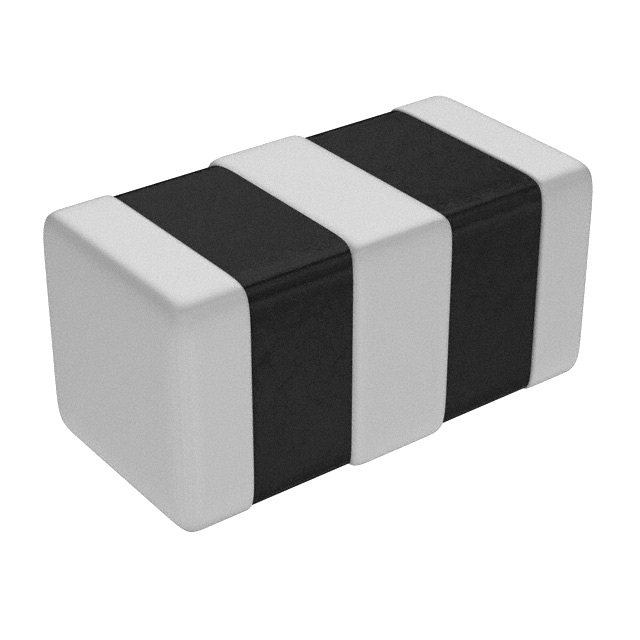

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NFL18ST507X1C3D
Manufacturer/Brand:	Murata Electronics
Product description	FILTER LC(T) 43NH/10PF SMD
Datasheets:	1.NFL18ST507X1C3D.pdf 2.NFL18ST507X1C3D.pdf 3.NFL18ST507X1C3D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	192686 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 192686 pcs

Reference Price (In US Dollars)

1 pcs: $0.184

10 pcs: $0.177

25 pcs: $0.171

50 pcs: $0.14

100 pcs: $0.126

250 pcs: $0.114

500 pcs: $0.108

1000 pcs: $0.097

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.184

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NFL18ST507X1C3D

Part Number	NFL18ST507X1C3D	Manufacturer	Murata Electronics
Description	FILTER LC(T) 43NH/10PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	192686 pcs	Data sheet	1.NFL18ST507X1C3D.pdf 2.NFL18ST507X1C3D.pdf 3.NFL18ST507X1C3D.pdf
Voltage - Rated	16V	Values	L = 43nH, C = 10pF
Type	Low Pass	Technology	LC (T-Type)
Size / Dimension	0.063" L x 0.032" W (1.60mm x 0.80mm)	Series	EMIFIL®, NFL18
Resistance - Channel (Ohms)	1.5	Packaging	Cut Tape (CT)
Package / Case	0603 (1608 Metric), 3 PC Pad	Other Names	490-4015-1
Operating Temperature	-55°C ~ 125°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.035" (0.90mm)	Filter Order	3rd
ESD Protection	No	Detailed Description	LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel L = 43nH, C = 10pF 200mA 0603 (1608 Metric), 3 PC Pad
Current	200mA	Center / Cutoff Frequency	500MHz (Cutoff)
Attenuation Value	-	Applications	General Purpose
