LQW15CA22NK00D

Murata Electronics

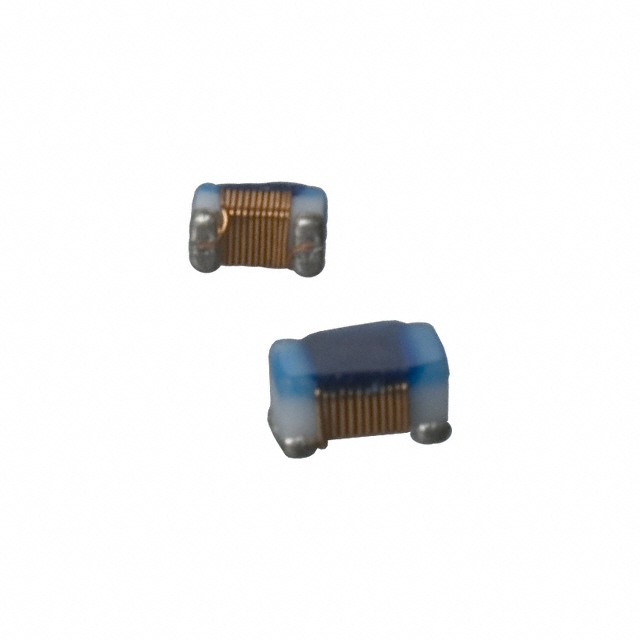

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LQW15CA22NK00D
Manufacturer/Brand:	Murata Electronics
Product description	FIXED IND 22NH 1.3A 60 MOHM SMD
Datasheets:	1.LQW15CA22NK00D.pdf 2.LQW15CA22NK00D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	435242 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 435242 pcs

Reference Price (In US Dollars)

10000 pcs: $0.073

30000 pcs: $0.07

50000 pcs: $0.068

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.073

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LQW15CA22NK00D

Part Number	LQW15CA22NK00D	Manufacturer	Murata Electronics
Description	FIXED IND 22NH 1.3A 60 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	435242 pcs	Data sheet	1.LQW15CA22NK00D.pdf 2.LQW15CA22NK00D.pdf
Type	Wirewound	Tolerance	±10%
Supplier Device Package	-	Size / Dimension	0.040" L x 0.022" W (1.02mm x 0.55mm)
Shielding	Unshielded	Series	LQW15
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	490-12196-2	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	10MHz
Inductance	22nH	Height - Seated (Max)	0.026" (0.66mm)
Frequency - Self Resonant	3GHz	Detailed Description	22nH Unshielded Wirewound Inductor 1.3A 60 mOhm Max Nonstandard
DC Resistance (DCR)	60 mOhm Max	Current Rating	1.3A
Current - Saturation	-
