LQM21DN220N00L

Murata Electronics

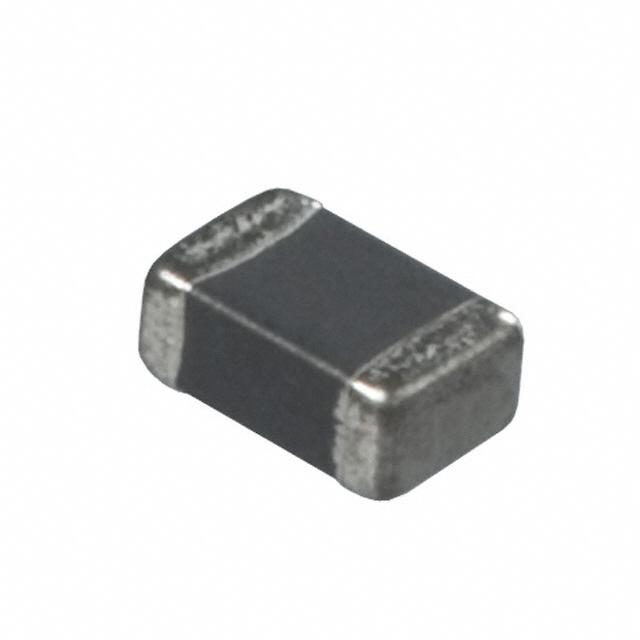

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LQM21DN220N00L
Manufacturer/Brand:	Murata Electronics
Product description	FIXED IND 22UH 13MA 650 MOHM SMD
Datasheets:	1.LQM21DN220N00L.pdf 2.LQM21DN220N00L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1300277 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1300277 pcs

Reference Price (In US Dollars)

3000 pcs: $0.03

6000 pcs: $0.028

15000 pcs: $0.027

30000 pcs: $0.026

75000 pcs: $0.025

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.03

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LQM21DN220N00L

Part Number	LQM21DN220N00L	Manufacturer	Murata Electronics
Description	FIXED IND 22UH 13MA 650 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1300277 pcs	Data sheet	1.LQM21DN220N00L.pdf 2.LQM21DN220N00L.pdf
Type	Multilayer	Tolerance	±30%
Supplier Device Package	0805 (2012 Metric)	Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Shielding	Shielded	Series	LQM21
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	0805 (2012 Metric)
Other Names	490-1123-2 LQG21C220N00T1	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	1MHz
Inductance	22µH	Height - Seated (Max)	0.057" (1.45mm)
Frequency - Self Resonant	16MHz	Detailed Description	22µH Shielded Multilayer Inductor 13mA 650 mOhm Max 0805 (2012 Metric)
DC Resistance (DCR)	650 mOhm Max	Current Rating	13mA
Current - Saturation	-
