Mueller Electric Co.
| Part Number | BU-P3778 | Manufacturer | Mueller Electric Co. |
|---|---|---|---|

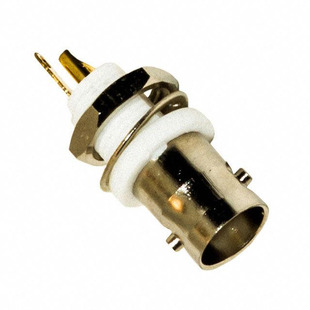

| Description | CONN BNC JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20352 pcs | Data sheet | BU-P3778.pdf |
| Voltage Rating | 500V | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 314-1249 BU-P3778-ND |
Operating Temperature | -70°C ~ 170°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Silver, White |
| Features | Isolated | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount Solder Cup |
| Contact Termination | Solder Cup | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
