9324-0-15-15-23-27-04-0

Mill-Max

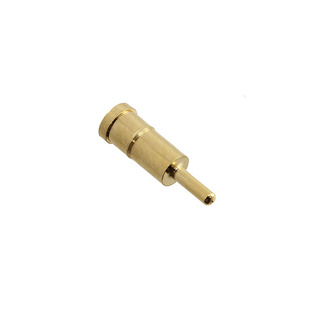

Image may be representation. See specifications for product details.

Product Overview

Part Number:	9324-0-15-15-23-27-04-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .045-.065 PRESSFIT
Datasheets:	1.9324-0-15-15-23-27-04-0.pdf 2.9324-0-15-15-23-27-04-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	128675 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 128675 pcs

Reference Price (In US Dollars)

1 pcs: $0.271

10 pcs: $0.253

25 pcs: $0.228

50 pcs: $0.203

100 pcs: $0.194

250 pcs: $0.177

500 pcs: $0.169

1000 pcs: $0.139

2500 pcs: $0.127

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.271

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 9324-0-15-15-23-27-04-0

Part Number	9324-0-15-15-23-27-04-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .045-.065 PRESSFIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	128675 pcs	Data sheet	1.9324-0-15-15-23-27-04-0.pdf 2.9324-0-15-15-23-27-04-0.pdf
Termination	Press-Fit	Tail Type	Standard Tail
Tail Diameter	0.041" (1.04mm)	Socket Depth	0.200" (5.08mm)
Series	9324	Pin Hole Diameter	0.088" (2.24mm)
Packaging	Bulk	Other Names	9324-015152327040 9324-015152327040-ND 9324015152327040 ED1180
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.106" (2.69mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.395" (10.03mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.119" (3.02mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) Standard Tail Press-Fit
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.045" ~ 0.065" (1.14mm ~ 1.65mm)
