9225-0-15-15-10-27-10-0

Mill-Max

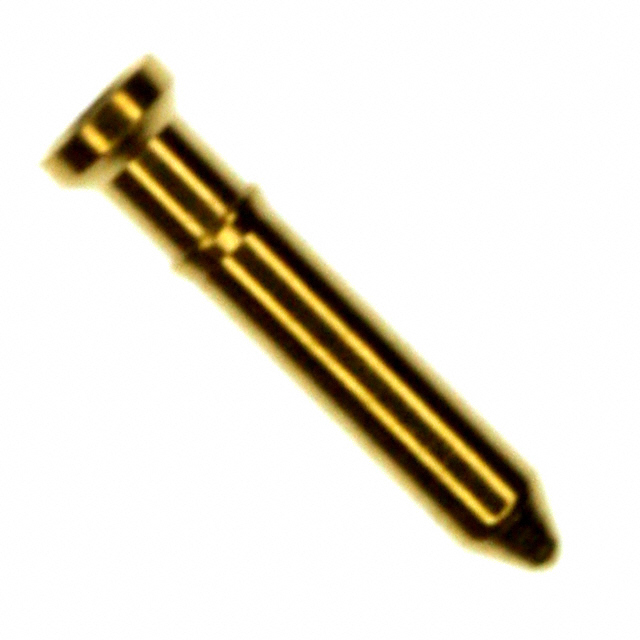

Image may be representation. See specifications for product details.

Product Overview

Part Number:	9225-0-15-15-10-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .012-.017 PRESSFIT
Datasheets:	1.9225-0-15-15-10-27-10-0.pdf 2.9225-0-15-15-10-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	264490 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 264490 pcs

Reference Price (In US Dollars)

1 pcs: $0.112

10 pcs: $0.107

25 pcs: $0.091

50 pcs: $0.078

100 pcs: $0.075

250 pcs: $0.067

500 pcs: $0.064

1000 pcs: $0.053

2500 pcs: $0.049

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.112

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 9225-0-15-15-10-27-10-0

Part Number	9225-0-15-15-10-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .012-.017 PRESSFIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	264490 pcs	Data sheet	1.9225-0-15-15-10-27-10-0.pdf 2.9225-0-15-15-10-27-10-0.pdf
Termination	Press-Fit	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.155" (3.94mm)
Series	9225	Pin Hole Diameter	0.028" (0.71mm)
Packaging	Bulk	Other Names	9225-015151027100 9225-015151027100-ND 9225015151027100 ED1167 Q6418318 Q7845040 T1643844
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.039" (0.99mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.225" (5.72mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.055" (1.40mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) No Tail Press-Fit
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.012" ~ 0.017" (0.30mm ~ 0.43mm)
