862-40-021-00-180000

Mill-Max

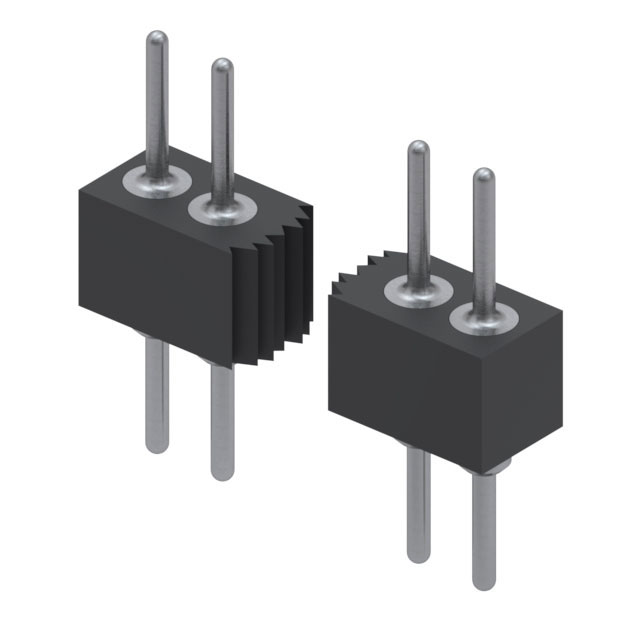

Image may be representation. See specifications for product details.

Product Overview

Part Number:	862-40-021-00-180000
Manufacturer/Brand:	Mill-Max
Product description	CONN HEADER 21POS DIP TIN PCB
Datasheets:	1.862-40-021-00-180000.pdf 2.862-40-021-00-180000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31807 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31807 pcs

Reference Price (In US Dollars)

1 pcs: $1.134

13 pcs: $1.087

104 pcs: $0.906

507 pcs: $0.77

1001 pcs: $0.657

5005 pcs: $0.589

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.134

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 862-40-021-00-180000

Part Number	862-40-021-00-180000	Manufacturer	Mill-Max
Description	CONN HEADER 21POS DIP TIN PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31807 pcs	Data sheet	1.862-40-021-00-180000.pdf 2.862-40-021-00-180000.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	862	Row Spacing - Mating	-
Pitch - Mating	0.070" (1.78mm)	Packaging	Tube
Overall Contact Length	0.399" (10.13mm)	Other Names	8.624E+15 8624002100180000 ED90309
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	21
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)	Insulation Height	0.110" (2.79mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 21 position 0.070" (1.78mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass Alloy	Contact Length - Post	0.117" (2.97mm)
Contact Length - Mating	0.142" (3.61mm)	Contact Finish Thickness - Post	200.0µin (5.08µm)
Contact Finish Thickness - Mating	200.0µin (5.08µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
