852-10-100-20-001000

Mill-Max

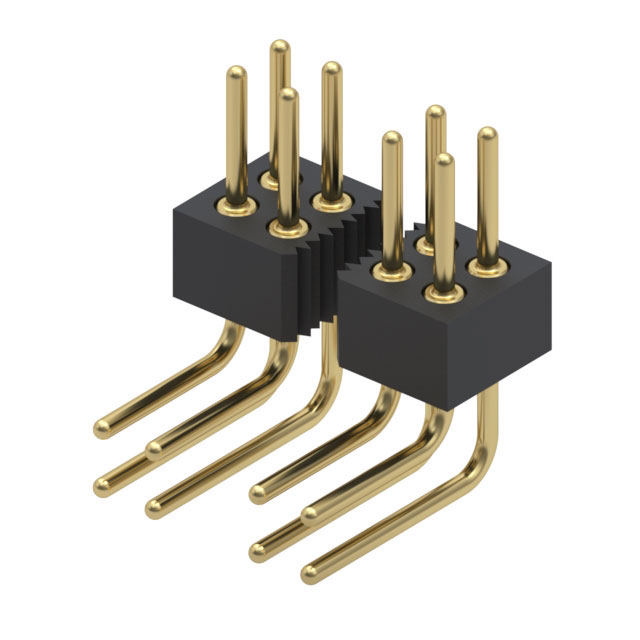

Image may be representation. See specifications for product details.

Product Overview

Part Number:	852-10-100-20-001000
Manufacturer/Brand:	Mill-Max
Product description	CONN HEADER RT ANG 2X50 .050
Datasheets:	1.852-10-100-20-001000.pdf 2.852-10-100-20-001000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6591 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6591 pcs

Reference Price (In US Dollars)

1 pcs: $5.072

10 pcs: $4.612

100 pcs: $3.92

500 pcs: $3.343

1000 pcs: $3.067

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.072

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 852-10-100-20-001000

Part Number	852-10-100-20-001000	Manufacturer	Mill-Max
Description	CONN HEADER RT ANG 2X50 .050	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6591 pcs	Data sheet	1.852-10-100-20-001000.pdf 2.852-10-100-20-001000.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	852	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	852-10-100-20-001 8521010020001000 ED87100
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	100
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6	Insulation Height	0.120" (3.05mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 100 position 0.050" (1.27mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass Alloy	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.118" (3.00mm)	Contact Finish Thickness - Post	10.0µin (0.25µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
