Mill-Max

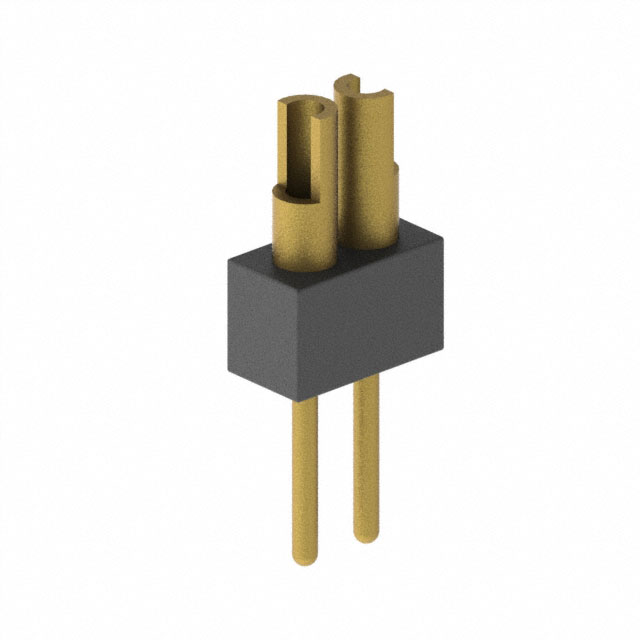

| Part Number | 852-10-002-10-003000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | SOLDER CUP HEADER; .050" PITCH; | Lead Free Status / RoHS Status | |
| Quantity Available | 58968 pcs | Data sheet | 1.852-10-002-10-003000.pdf2.852-10-002-10-003000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | 852 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | - | Packaging | Bulk |
| Overall Contact Length | 0.303" (7.70mm) | Other Names | ED10277 |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.075" (1.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass Alloy |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
