8369-0-15-15-34-27-04-0

Mill-Max

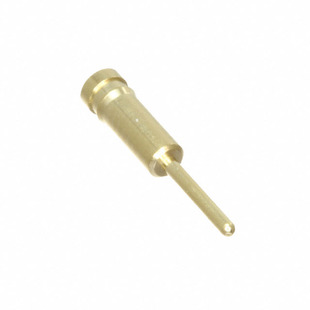

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8369-0-15-15-34-27-04-0
Manufacturer/Brand:	Mill-Max
Product description	RECEPTACLE WITH A STANDARD TAIL
Datasheets:	1.8369-0-15-15-34-27-04-0.pdf 2.8369-0-15-15-34-27-04-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	167467 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 167467 pcs

Reference Price (In US Dollars)

1 pcs: $0.228

10 pcs: $0.212

25 pcs: $0.191

50 pcs: $0.169

100 pcs: $0.162

250 pcs: $0.148

500 pcs: $0.141

1000 pcs: $0.117

2500 pcs: $0.106

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.228

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8369-0-15-15-34-27-04-0

Part Number	8369-0-15-15-34-27-04-0	Manufacturer	Mill-Max
Description	RECEPTACLE WITH A STANDARD TAIL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	167467 pcs	Data sheet	1.8369-0-15-15-34-27-04-0.pdf 2.8369-0-15-15-34-27-04-0.pdf
Termination	Press-Fit	Tail Type	Standard Tail
Tail Diameter	0.030" (0.76mm)	Socket Depth	0.220" (5.59mm)
Series	8369	Pin Hole Diameter	0.064" (1.63mm)
Packaging	Bulk	Other Names	ED10397
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.084" (2.13mm)
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.475" (12.07mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Force	-
Flange Diameter	0.090" (2.29mm)	Features	-
Detailed Description	Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Press-Fit	Contact Material	Beryllium Copper
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Board Thickness	-	Accepts Square Pin Size	-
Accepts Pin Diameter	0.032" ~ 0.046" (0.81mm ~ 1.17mm)
