8347-0-15-15-13-27-10-0

Mill-Max

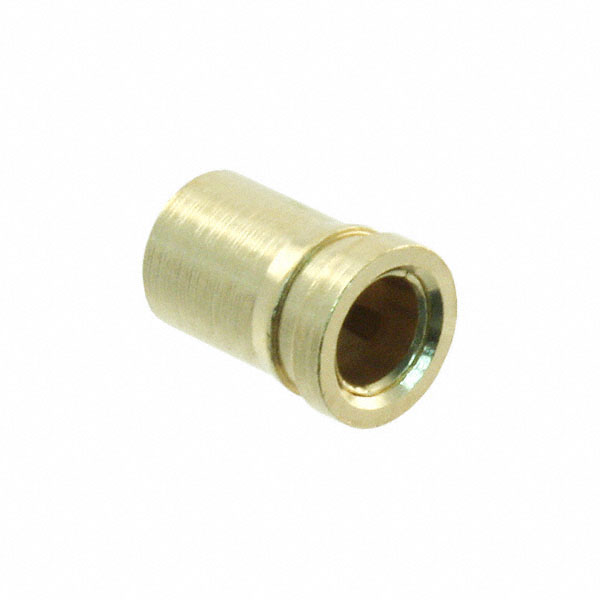

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8347-0-15-15-13-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	SOLDER MOUNT RECEPTACLE; ACCEPTS
Datasheets:	1.8347-0-15-15-13-27-10-0.pdf 2.8347-0-15-15-13-27-10-0.pdf
Stock Condition	111923 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 111923 pcs

Reference Price (In US Dollars)

1 pcs: $0.267

10 pcs: $0.235

25 pcs: $0.221

50 pcs: $0.212

100 pcs: $0.203

250 pcs: $0.184

500 pcs: $0.166

1000 pcs: $0.147

2500 pcs: $0.134

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.267

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8347-0-15-15-13-27-10-0

Part Number	8347-0-15-15-13-27-10-0	Manufacturer	Mill-Max
Description	SOLDER MOUNT RECEPTACLE; ACCEPTS	Lead Free Status / RoHS Status
Quantity Available	111923 pcs	Data sheet	1.8347-0-15-15-13-27-10-0.pdf 2.8347-0-15-15-13-27-10-0.pdf
Termination	Solder	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.250" (6.35mm)
Series	8347	Pin Hole Diameter	0.088" (2.24mm)
Packaging	Bulk	Other Names	ED10184
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.109" (2.77mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	2.870" (72.90mm)	Insertion Force	-
Flange Diameter	0.125" (3.18mm)	Features	-
Detailed Description	Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Solder	Contact Material	Beryllium Copper
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Board Thickness	-	Accepts Square Pin Size	-
Accepts Pin Diameter	0.048" ~ 0.064" (1.22mm ~ 1.63mm)
