Mill-Max

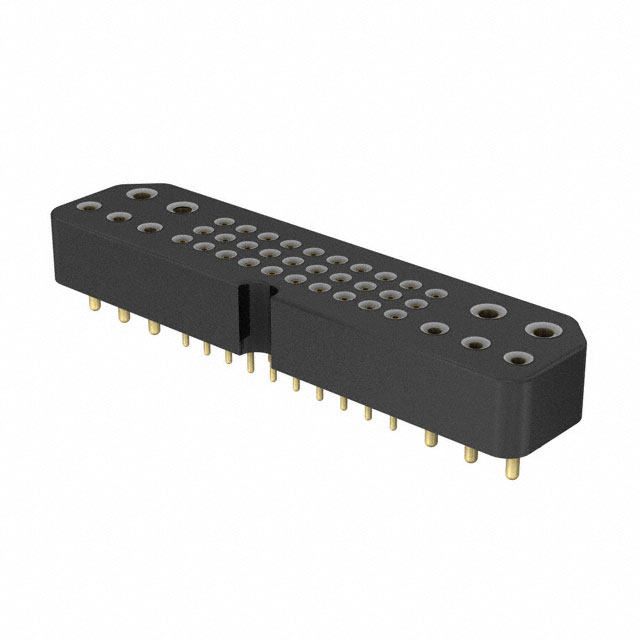

| Part Number | 809-43-040-10-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | SIGNAL CONN 40P POWER SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4609 pcs | Data sheet | 1.809-43-040-10-001000.pdf2.809-43-040-10-001000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | 809 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tube | Other Names | ED1395 |
| Operating Temperature | - | Number of Positions Loaded | All |
| Number of Positions | 40 (30 + 10 Power) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | 10.54mm | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.250" (6.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 40 (30 + 10 Power) Position Receptacle Connector Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.125" (3.18mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
