802-10-056-30-001000

Mill-Max

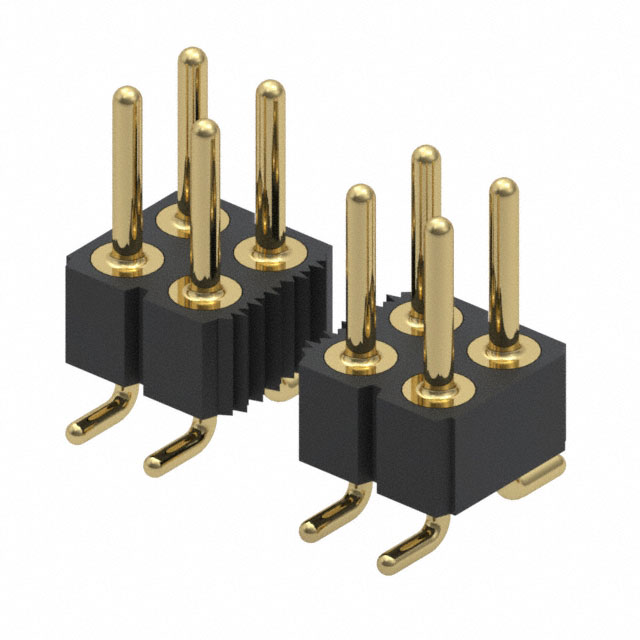

Image may be representation. See specifications for product details.

Product Overview

Part Number:	802-10-056-30-001000
Manufacturer/Brand:	Mill-Max
Product description	CONN HEADER DBL 56POS .100" SMD
Datasheets:	1.802-10-056-30-001000.pdf 2.802-10-056-30-001000.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4980 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4980 pcs

Reference Price (In US Dollars)

1 pcs: $6.221

10 pcs: $5.775

100 pcs: $5.034

500 pcs: $4.59

1000 pcs: $4.22

5000 pcs: $3.85

10000 pcs: $3.702

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.221

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 802-10-056-30-001000

Part Number	802-10-056-30-001000	Manufacturer	Mill-Max
Description	CONN HEADER DBL 56POS .100" SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4980 pcs	Data sheet	1.802-10-056-30-001000.pdf 2.802-10-056-30-001000.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	802	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	ED1313-56
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	56
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Height	0.110" (2.79mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount 56 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Brass Alloy
Contact Length - Post	-	Contact Length - Mating	0.195" (4.95mm)
Contact Finish Thickness - Post	10.0µin (0.25µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
