Mill-Max

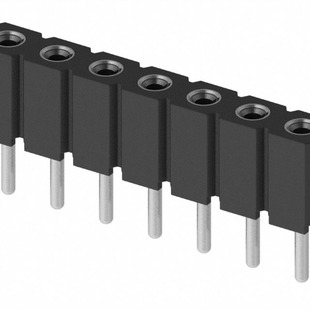

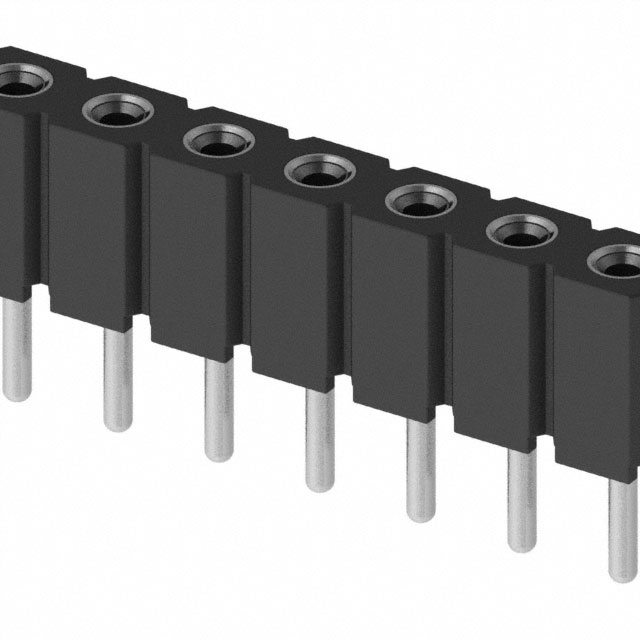

| Part Number | 801-99-032-10-012000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN SKT STRIP SLDRTL | Lead Free Status / RoHS Status | RoHS non-compliant |
| Quantity Available | 7145 pcs | Data sheet | 1.801-99-032-10-012000.pdf2.801-99-032-10-012000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | 801 |
| Row Spacing - Mating | - | RoHS Status | RoHS non-compliant |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 32 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Insulation Height | 0.165" (4.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 32 Position Receptacle Connector Through Hole | Current Rating | 4.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Receptacle | Applications | - |
