800-10-020-20-001000

Mill-Max

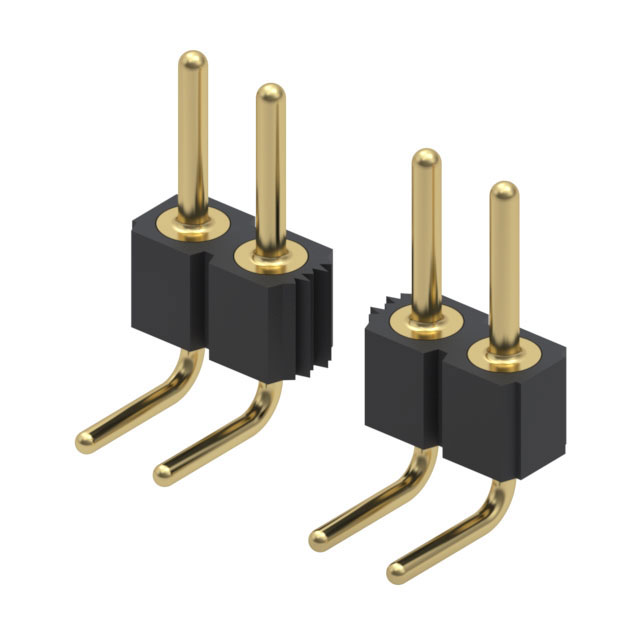

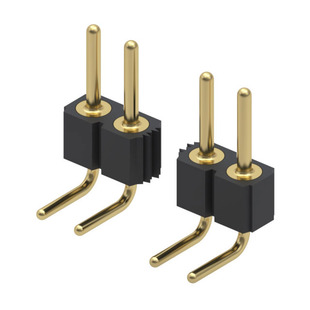

Image may be representation. See specifications for product details.

Product Overview

Part Number:	800-10-020-20-001000
Manufacturer/Brand:	Mill-Max
Product description	HEADER INTERCONNCT R/A SIP 20POS
Datasheets:	1.800-10-020-20-001000.pdf 2.800-10-020-20-001000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7427 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7427 pcs

Reference Price (In US Dollars)

50 pcs: $5.09

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.09

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 800-10-020-20-001000

Part Number	800-10-020-20-001000	Manufacturer	Mill-Max
Description	HEADER INTERCONNCT R/A SIP 20POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7427 pcs	Data sheet	1.800-10-020-20-001000.pdf 2.800-10-020-20-001000.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	800	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	80010-02020001000 8001002020001000
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)	Insulation Height	0.100" (2.54mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass Alloy	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.195" (4.95mm)	Contact Finish Thickness - Post	10.0µin (0.25µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
