7504-0-00-15-00-00-03-0

Mill-Max

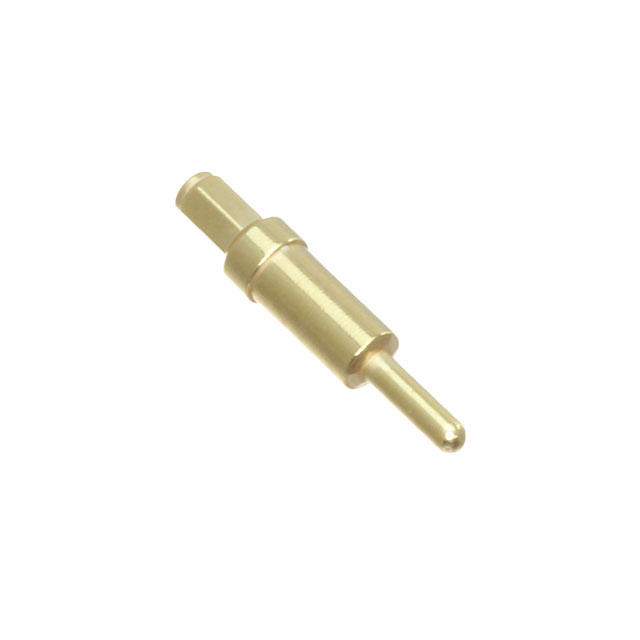

Image may be representation. See specifications for product details.

Product Overview

Part Number:	7504-0-00-15-00-00-03-0
Manufacturer/Brand:	Mill-Max
Product description	PRESS-FIT PCB PIN
Datasheets:	1.7504-0-00-15-00-00-03-0.pdf 2.7504-0-00-15-00-00-03-0.pdf
Stock Condition	239446 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 239446 pcs

Reference Price (In US Dollars)

1 pcs: $0.126

10 pcs: $0.118

25 pcs: $0.101

50 pcs: $0.086

100 pcs: $0.083

250 pcs: $0.074

500 pcs: $0.071

1000 pcs: $0.059

2500 pcs: $0.054

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.126

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 7504-0-00-15-00-00-03-0

Part Number	7504-0-00-15-00-00-03-0	Manufacturer	Mill-Max
Description	PRESS-FIT PCB PIN	Lead Free Status / RoHS Status
Quantity Available	239446 pcs	Data sheet	1.7504-0-00-15-00-00-03-0.pdf 2.7504-0-00-15-00-00-03-0.pdf
Termination	Press-Fit	Terminal Type	PC Pin
Terminal Style	Single End	Series	7504
Pin Size - Below Flange	0.058" (1.47mm) Dia	Pin Size - Above Flange	0.040" (1.02mm) Dia
Packaging	Bulk	Other Names	ED10390
Mounting Type	Through Hole	Mounting Hole Diameter	0.068" (1.73mm)
Moisture Sensitivity Level (MSL)	Not Applicable	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.460" (11.68mm)
Length - Below Flange	0.100" (2.54mm)	Length - Above Flange	0.310" (7.87mm)
Insulation Color	-	Insulation	Non-Insulated
Flange Diameter	0.093" (2.36mm)	Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
Contact Material	Brass Alloy	Contact Finish Thickness	10.0µin (0.25µm)
Contact Finish	Gold	Board Thickness	-
