6561-0-15-15-05-27-10-0

Mill-Max

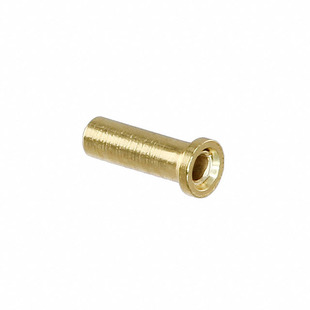

Image may be representation. See specifications for product details.

Product Overview

Part Number:	6561-0-15-15-05-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	RECEPTACLE WITH NO TAIL
Datasheets:	1.6561-0-15-15-05-27-10-0.pdf 2.6561-0-15-15-05-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	180851 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 180851 pcs

Reference Price (In US Dollars)

1 pcs: $0.177

10 pcs: $0.167

25 pcs: $0.15

50 pcs: $0.134

100 pcs: $0.128

250 pcs: $0.117

500 pcs: $0.111

1000 pcs: $0.092

2500 pcs: $0.083

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.177

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 6561-0-15-15-05-27-10-0

Part Number	6561-0-15-15-05-27-10-0	Manufacturer	Mill-Max
Description	RECEPTACLE WITH NO TAIL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	180851 pcs	Data sheet	1.6561-0-15-15-05-27-10-0.pdf 2.6561-0-15-15-05-27-10-0.pdf
Termination	Solder	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.196" (4.98mm)
Series	6561	Pin Hole Diameter	0.031" (0.79mm)
Packaging	Bulk	Other Names	ED10395
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.051" (1.30mm)
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.196" (4.98mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Force	-
Flange Diameter	0.070" (1.78mm)	Features	-
Detailed Description	Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Solder	Contact Material	Beryllium Copper
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Board Thickness	-	Accepts Square Pin Size	-
Accepts Pin Diameter	0.015" ~ 0.022" (0.38mm ~ 0.56mm)
