5920-0-00-15-00-00-03-0

Mill-Max

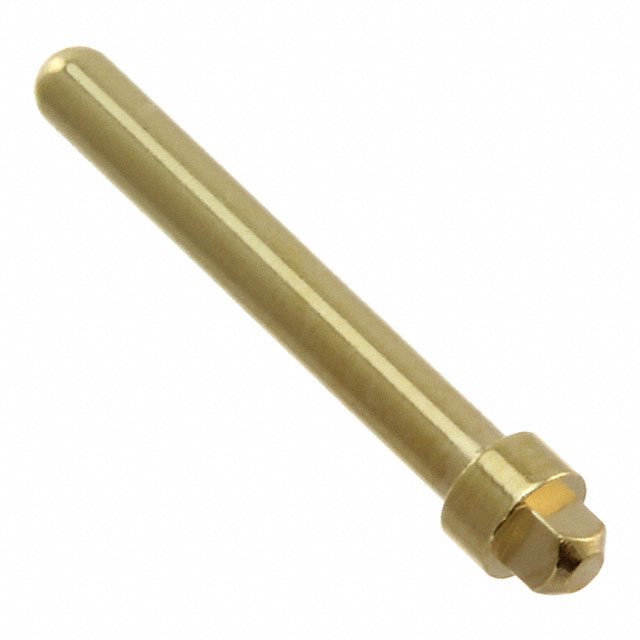

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5920-0-00-15-00-00-03-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN 0.080DIA GOLD
Datasheets:	1.5920-0-00-15-00-00-03-0.pdf 2.5920-0-00-15-00-00-03-0.pdf
Stock Condition	139829 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 139829 pcs

Reference Price (In US Dollars)

1 pcs: $0.228

10 pcs: $0.213

25 pcs: $0.192

50 pcs: $0.171

100 pcs: $0.163

250 pcs: $0.149

500 pcs: $0.142

1000 pcs: $0.117

2500 pcs: $0.107

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.228

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5920-0-00-15-00-00-03-0

Part Number	5920-0-00-15-00-00-03-0	Manufacturer	Mill-Max
Description	CONN PC PIN 0.080DIA GOLD	Lead Free Status / RoHS Status
Quantity Available	139829 pcs	Data sheet	1.5920-0-00-15-00-00-03-0.pdf 2.5920-0-00-15-00-00-03-0.pdf
Termination	Press-Fit	Terminal Type	PC Pin
Terminal Style	Flanged	Series	5920
Pin Size - Below Flange	0.085" (2.16mm) Dia	Pin Size - Above Flange	0.080" (2.03mm) Dia
Packaging	Bulk	Other Names	ED10969
Mounting Type	Through Hole	Mounting Hole Diameter	0.086" (2.18mm)
Material - Insulation	-	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.713" (18.10mm)	Length - Below Flange	0.063" (1.60mm)
Length - Above Flange	0.591" (15.01mm)	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.118" (3.00mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.080" (2.03mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-
