Mill-Max

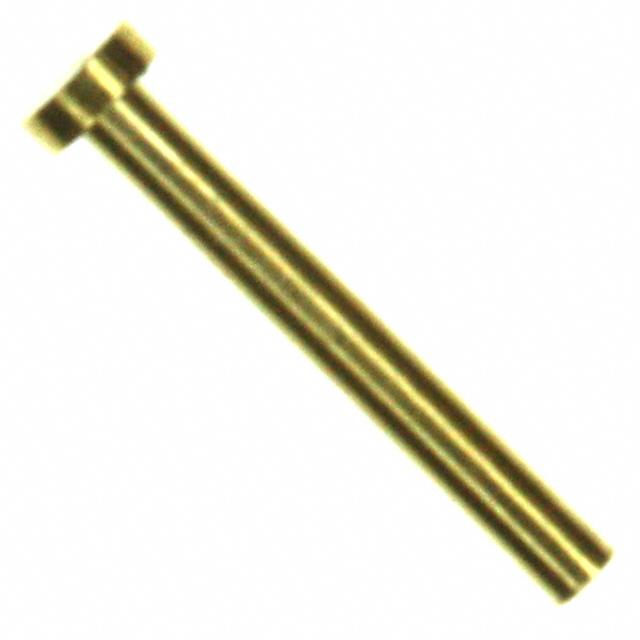

| Part Number | 5063-0-00-15-00-00-33-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.020DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160061 pcs | Data sheet | 5063-0-00-15-00-00-33-0.pdf |
| Termination | Solder | Terminal Type | PC Pin |
| Terminal Style | Single End, Nail Head | Series | 5063 |
| Pin Size - Below Flange | - | Pin Size - Above Flange | 0.020" (0.51mm) Dia |
| Packaging | Bulk | Other Names | 5.063E+15 5063000150000330 ED90406 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.024" (0.61mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.172" (4.37mm) |
| Length - Below Flange | - | Length - Above Flange | 0.160" (4.06mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.036" (0.91mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia | Contact Material | Brass Alloy |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - |
