Mill-Max

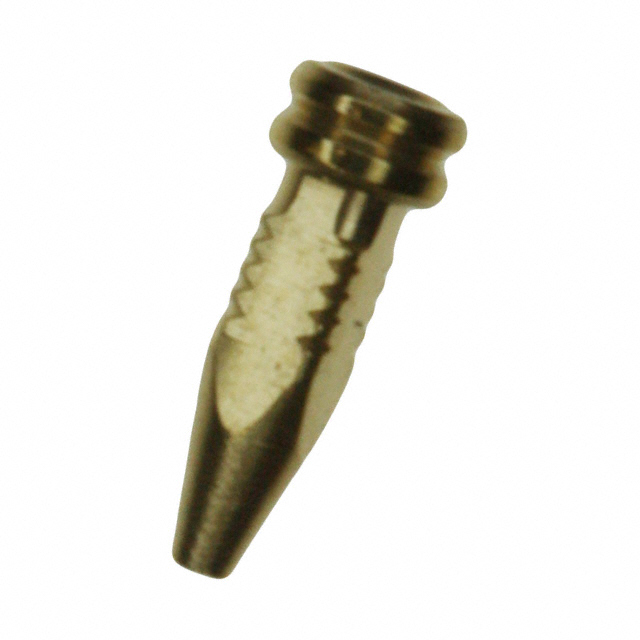

| Part Number | 4993-0-15-15-10-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .012-.017 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 245998 pcs | Data sheet | 1.4993-0-15-15-10-27-10-0.pdf2.4993-0-15-15-10-27-10-0.pdf |
| Termination | Press-Fit | Tail Type | No Tail |
| Tail Diameter | - | Socket Depth | 0.100" (2.54mm) |
| Series | 4993 | Pin Hole Diameter | 0.028" (0.71mm) |
| Packaging | Bulk | Other Names | 4.9930151510271E+15 4993015151027100 ED90437 |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.041" ~ 0.044" (1.04mm ~ 1.12mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.155" (3.94mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Force | - | Flange Diameter | 0.055" (1.40mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) No Tail Press-Fit |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.012" ~ 0.017" (0.30mm ~ 0.43mm) |
