Mill-Max

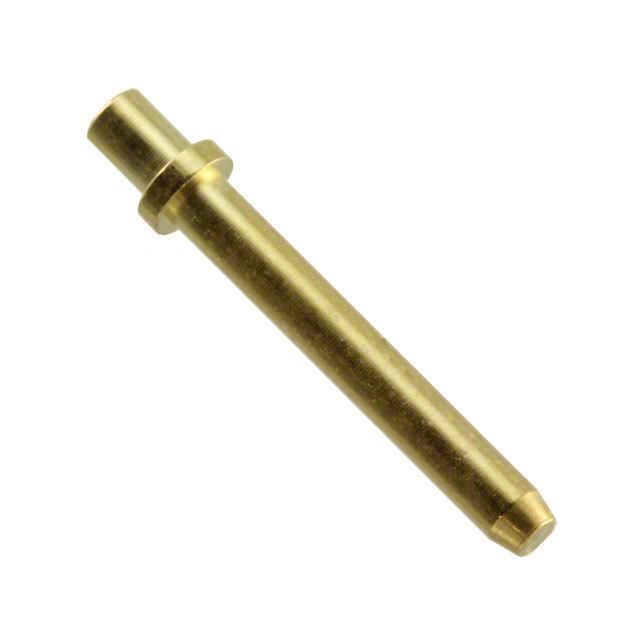

| Part Number | 4357-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.060 DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 288379 pcs | Data sheet | 1.4357-0-00-15-00-00-03-0.pdf2.4357-0-00-15-00-00-03-0.pdf |
| Termination | Solder | Terminal Type | PC Pin |
| Terminal Style | Single End | Series | 4357 |
| Pin Size - Below Flange | 0.062" (1.58mm) Dia | Pin Size - Above Flange | 0.060" (1.52mm) Dia |
| Packaging | Bulk | Other Names | 4357-0-00-15-00-00-03-0-ND ED10077 Q9648657 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.064" (1.63mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.549" (13.94mm) |
| Length - Below Flange | 0.084" (2.13mm) | Length - Above Flange | 0.440" (11.18mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.094" (2.39mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.060" (1.52mm) Dia | Contact Material | Brass Alloy |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - |
